Hobbywing XR10 Pro Stock Spec ESC

Product Description

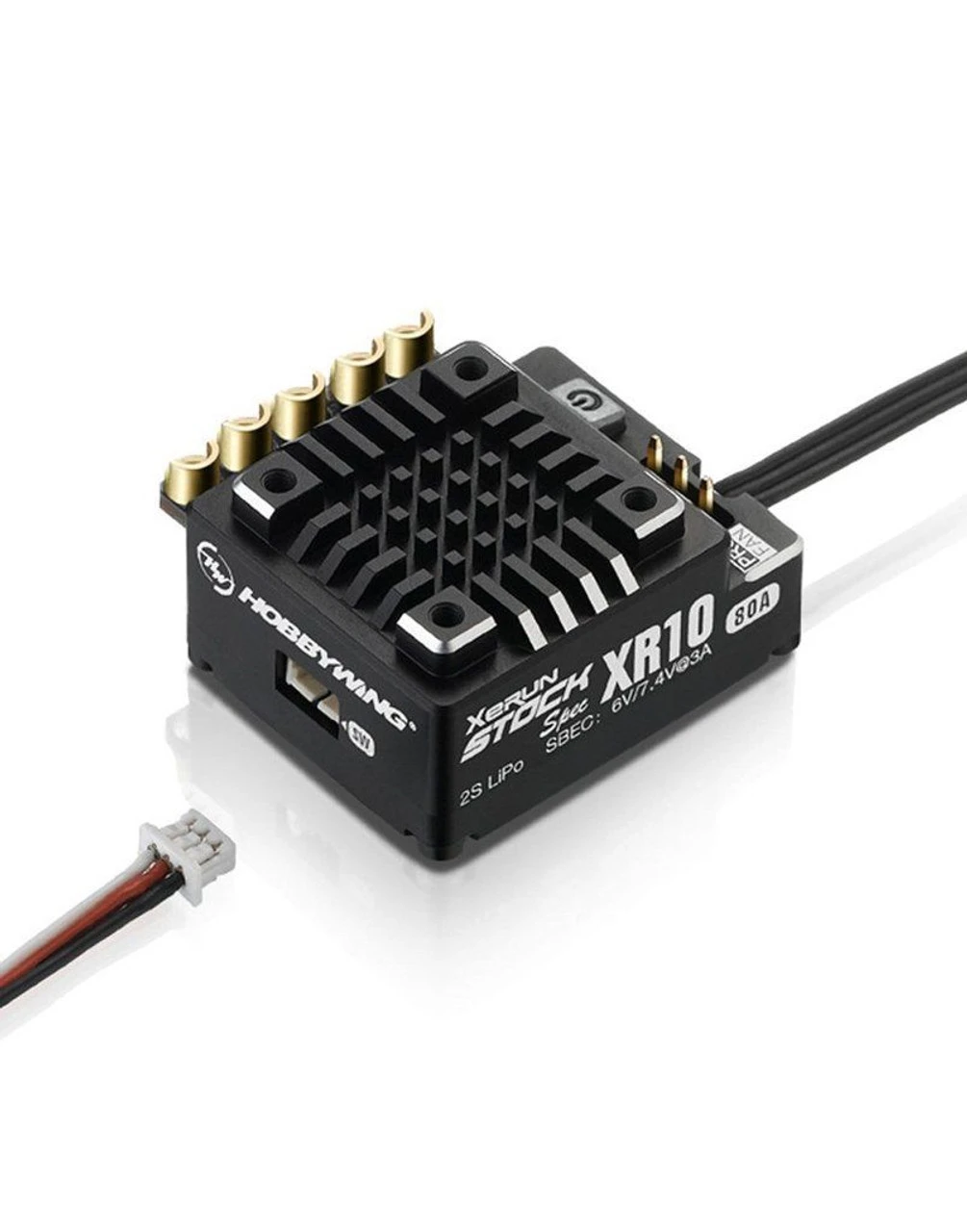

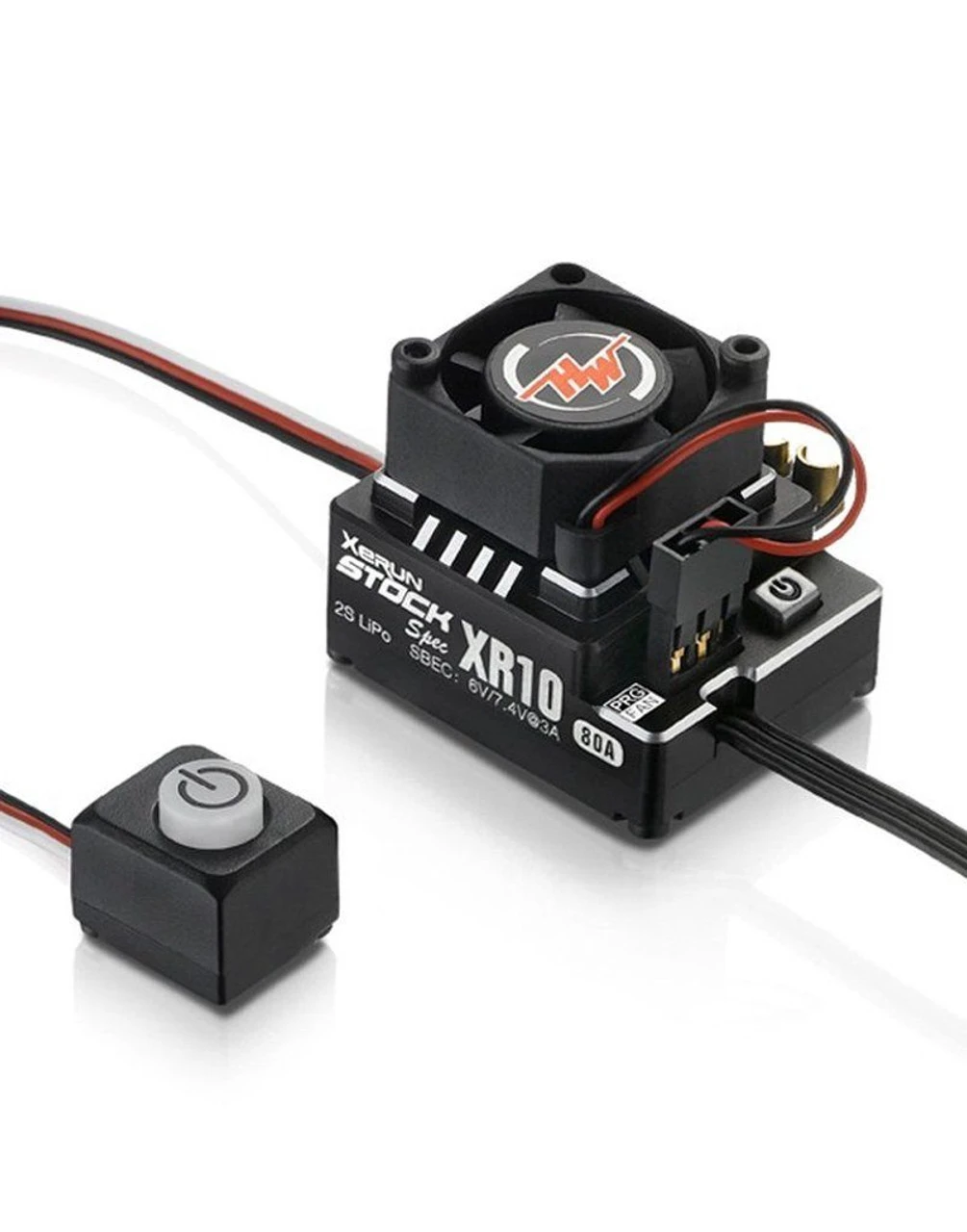

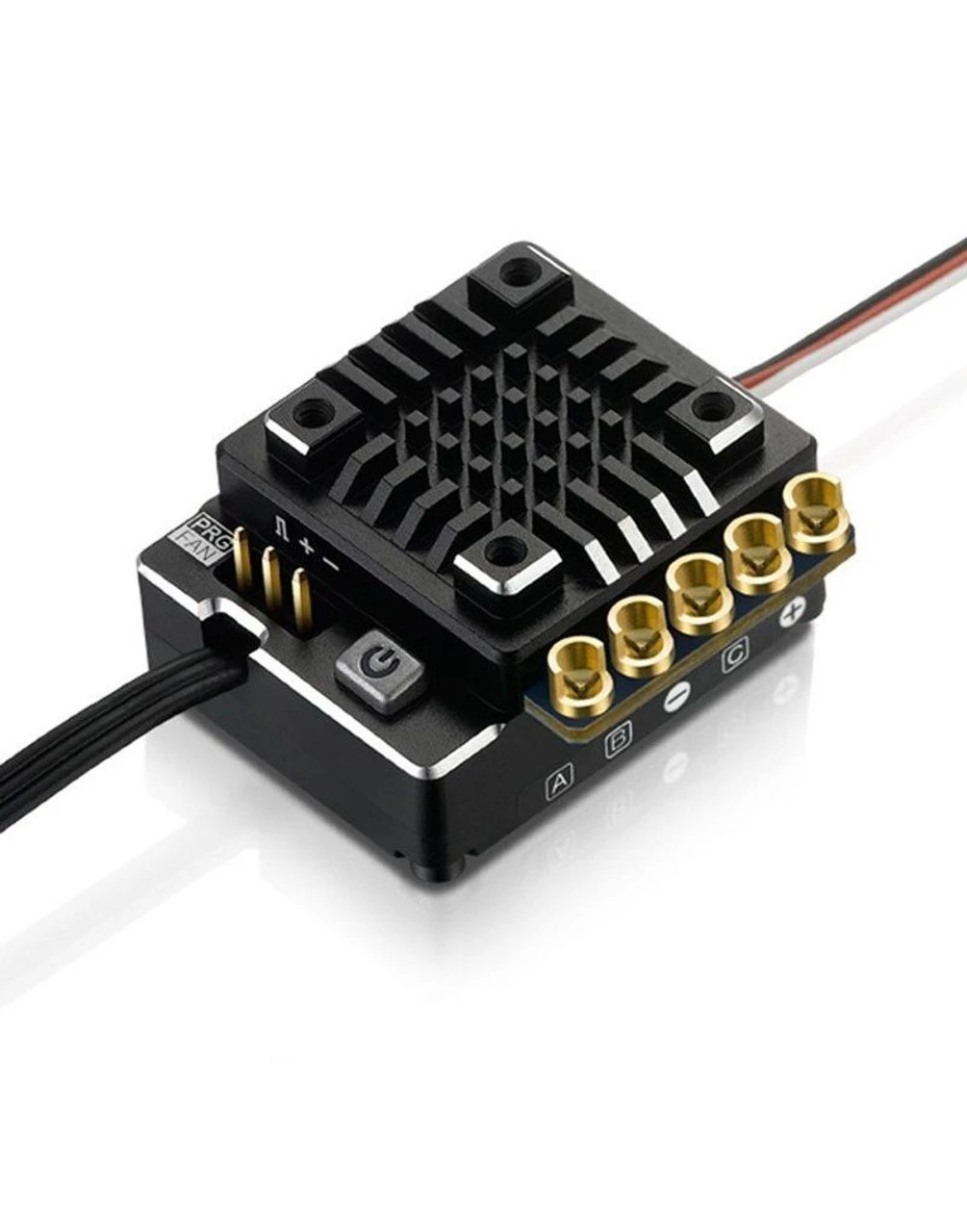

This is the Hobbywing XERUN XR10 Pro Stock Spec Sensored Racing ESC w/Fan Black

The Black Edition XR10 Stock Spec ESC features a smaller footprint and lighter weight than the older XERUN Stock Spec. It is designed for Stock (Non-Timing) racing with motors down to 13.5T in Off-Road applications and 10.5T motors in On-Road applications. It is designed for 2S use, but can operate with 3S power with the use of a high voltage fan.

Features:

• Zero timing firmware for ROAR SPORTMAN races and other fair races.
• World’s Smallest footprint & Lightweight ESC ever.  “28g”
• Innovative Double-switch Design: Built-in Electronic Switch, long life, and high reliability saves space on the chassis + Switch w/ extended wire (option)

• Programming/Upgrading/ Data Reading Wirelessly:
• Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM.
• WiFi Express Module or LCD Programming box can be used to check data easily in the pits.
• External Programming Port (EPP) is easy to connect and functions as a power port for an additional fan.

• Adjustable Throttle & Brake PWM Frequencies:
• Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
• Super Internal BEC:
• The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allow the user to use various high voltage servos.
• Multi Protection Functions makes running your ESC safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection.
• Easily programmed with the Wifi Express programming module, Multifunction LCD Program Box, and USB Link Software.

Specifications:
Current Continuous: 80A, Burst: 380A
Input: 5-7 cells NiMH/NiCd 2S LiPo
Built-in BEC: 6V@3A (Switch mode)
Motor Supported: Sensored and sensorless brushless motor
Suitable Motor: 3650 Motors 1/10 Touring Cars ≥10.5T, 1/10 Buggy≥13.5T
Suitable Car: STOCK class of 1/10th Touring Car & Buggy Racing
Cooling Fan: 5V-7.4V
Size: 31.5mm* 25.6mm* 16.1mm
Weight: 28g *No wires, cooling fan

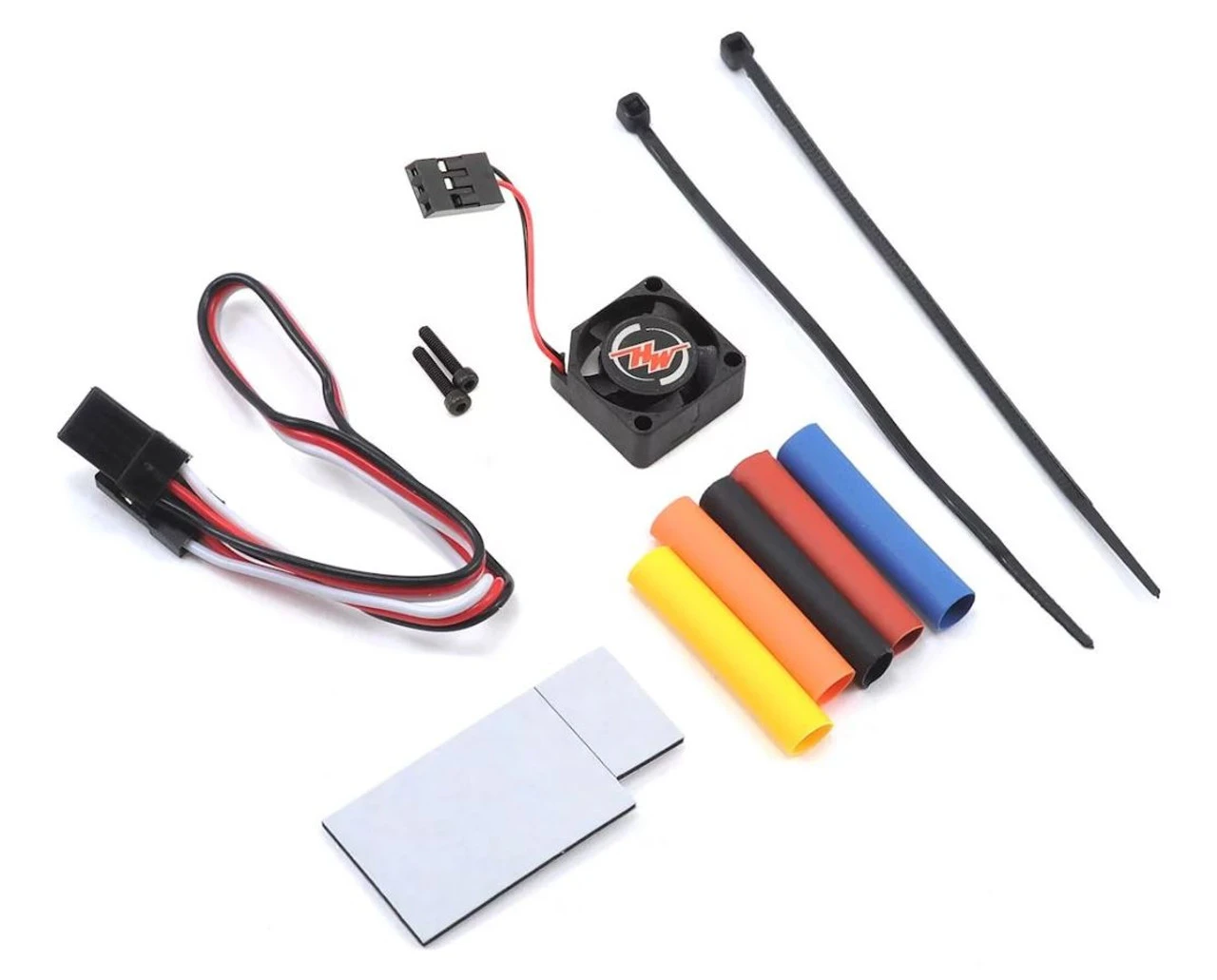

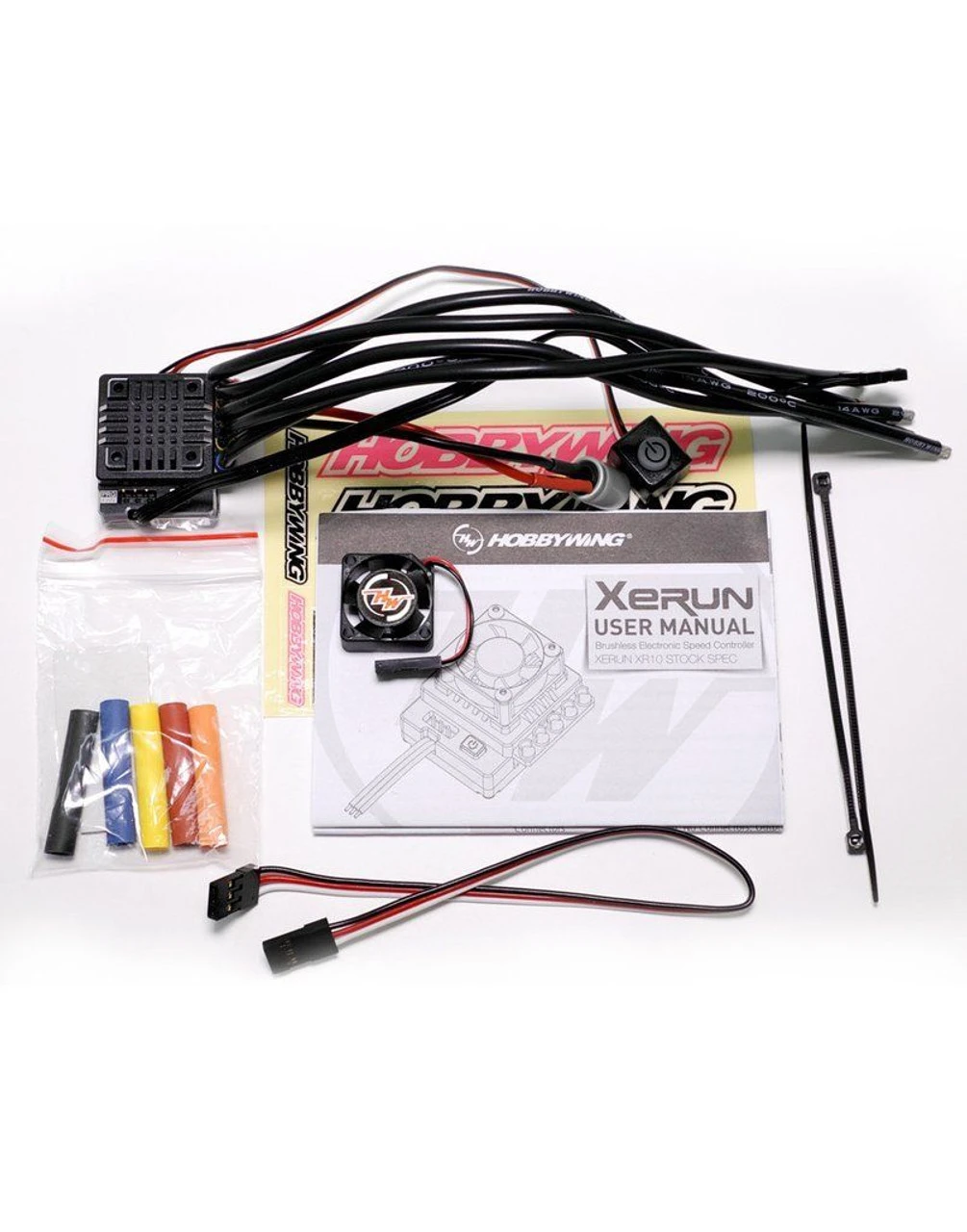

Includes:
XERUN Stock Spec ESC
Cooling Fan

Product Manual

Software Download: USB Link Software(USB Link V4.0.3) | USB Link Software (WIFI Link)

Warranty Information



Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing!
Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer.
Verify vehicle fit-ment before purchase.
Any and all warranty claims will be handled through the manufacturer directly.
