Sale!

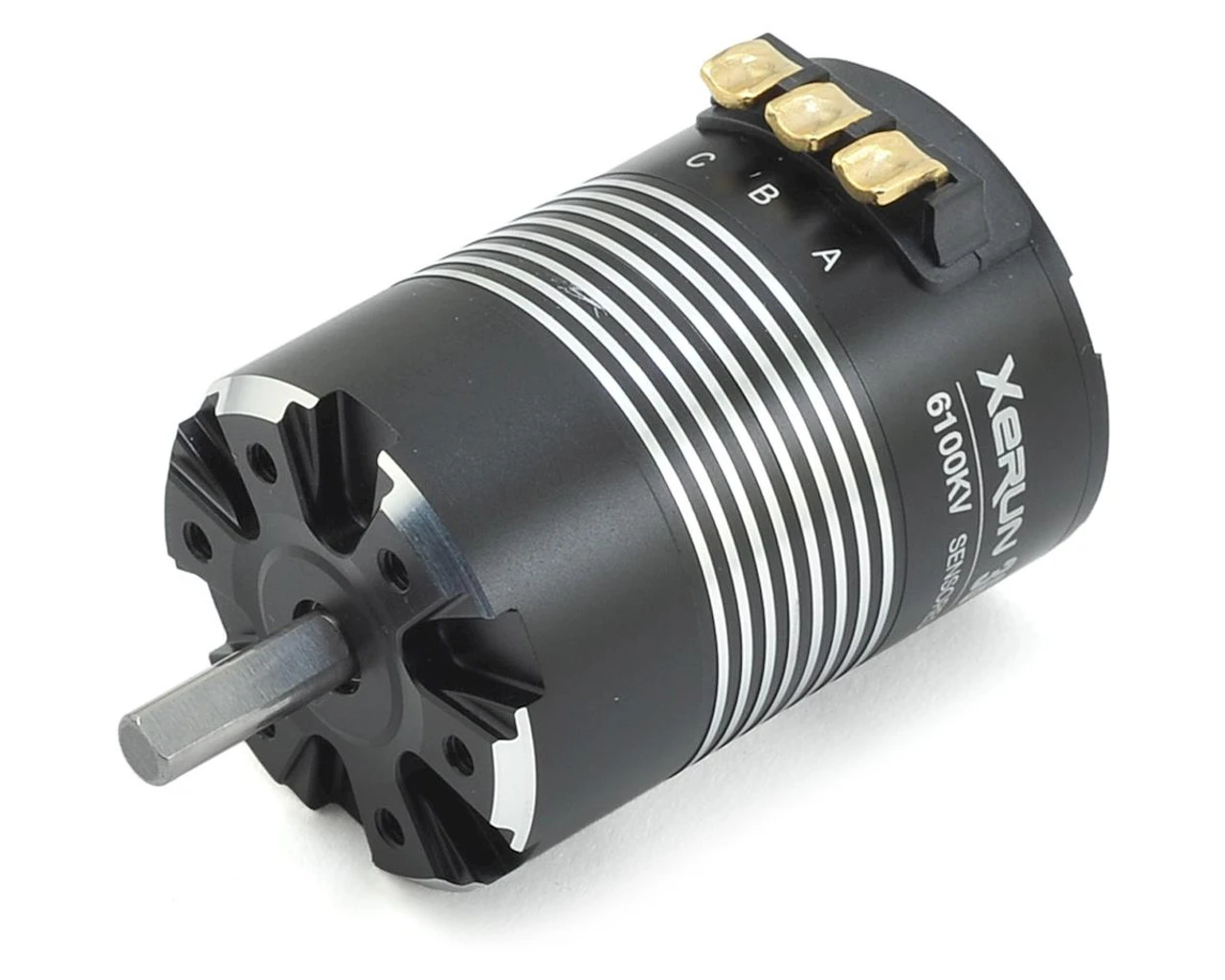

Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor 6100kV W/5mm Shaft

Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor 6100kV W/5mm Shaft - Image 2

Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor 6100kV W/5mm Shaft - Image 3

Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor 6100kV W/5mm Shaft

Original price was: $89.99.Current price is: $62.99.

SKU: HWI30401061 Categories: Electric Motors, Motors, ESCs & Accessories Tags: Electric Motors, Hobbywing

High quality products, hassle-free returns.
Multiple payment methods, 100% payment security
Effortless solutions, excellent customer care.
7 Days of Hassle-Free Returns

Description
Reviews (0)

Product Description

Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor 6100kV w/5mm shaft (HWI30401061)

This is the Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor. This 4-pole power house is great for light-duty short course, truck and monster truck sensored applications.

Features:

Innovative 4-pole-8-magnet “staggered pole” rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with a HW 1/8th sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the “sensored” mode at all times with gr eat output linearity after the identification. The Turbo timing is allowed to be activated for higher output.
Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the “sensor ed” mode.
With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power.
Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat.
Rebuild-able design (partially rebuild-able) and screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor effficiency.
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
Updated “U” solder tabs at the bottom of the motor for easy soldering and wiring.

Specification:

kV (no load): 6100
LiPo: 2S
Resistance: 2.9
No-load Current: 5.9A
Motor Diameter: 36mm (1.417in)
Motor Length: 52.5mm (2.067in)
Shaft Diameter: 5mm (0.197in)
Shaft Length: 15mm (0.591in)
Poles: 4
Weight: 186g (6.56oz)

Includes:

(1) Brushless Motor

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing!
Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer.
Verify vehicle fit-ment before purchase.
Returns will only be accepted on items that are returned in new, factory-sealed packaging. Used, damaged (unless damaged when it arrived to you), and opened items will not receive a full refund. Any and all warranty claims will be handled through the manufacturer directly.
