Hobbywing QuicRun 1625 Brushed ESC (1/18, 1/16)

Product Description

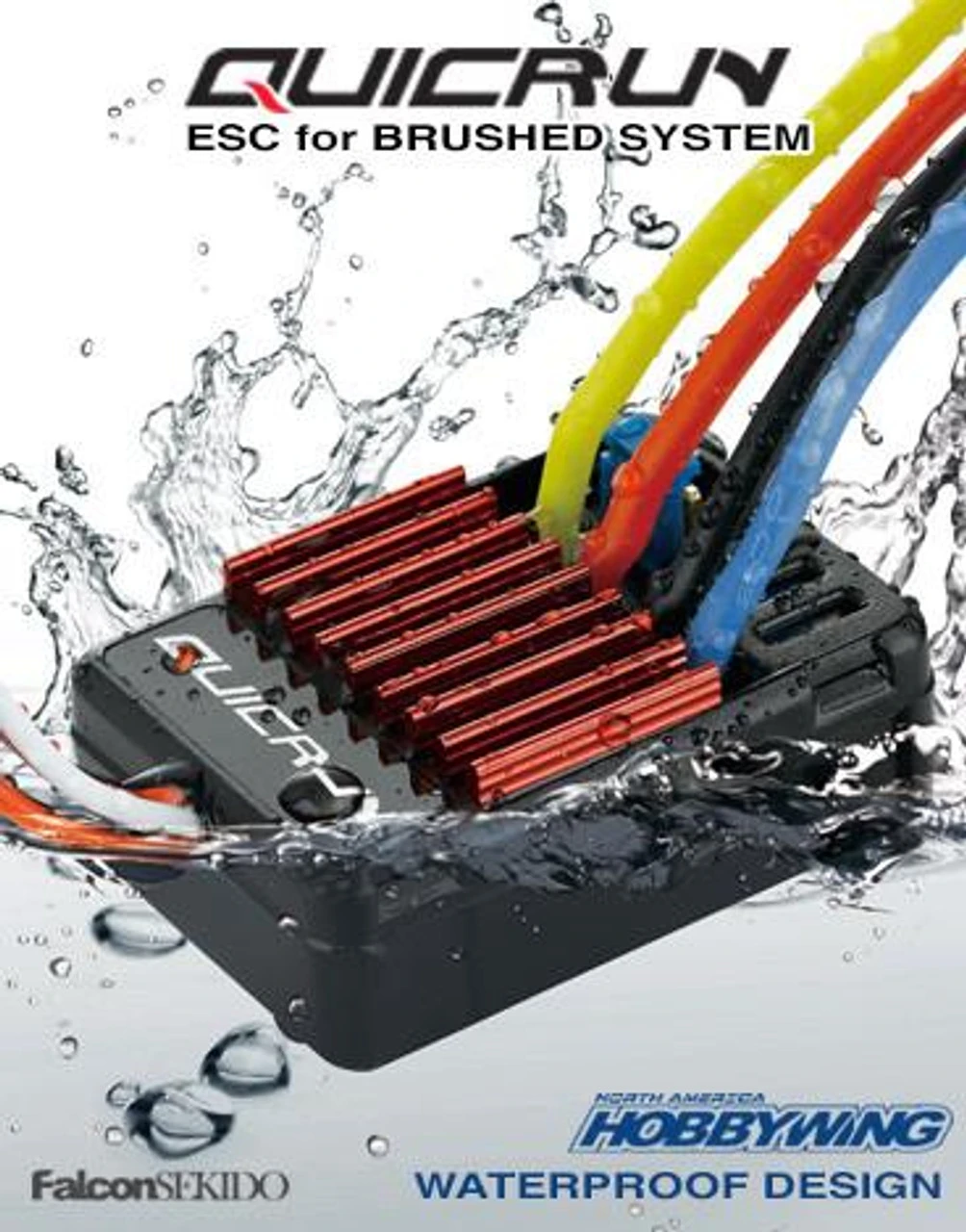

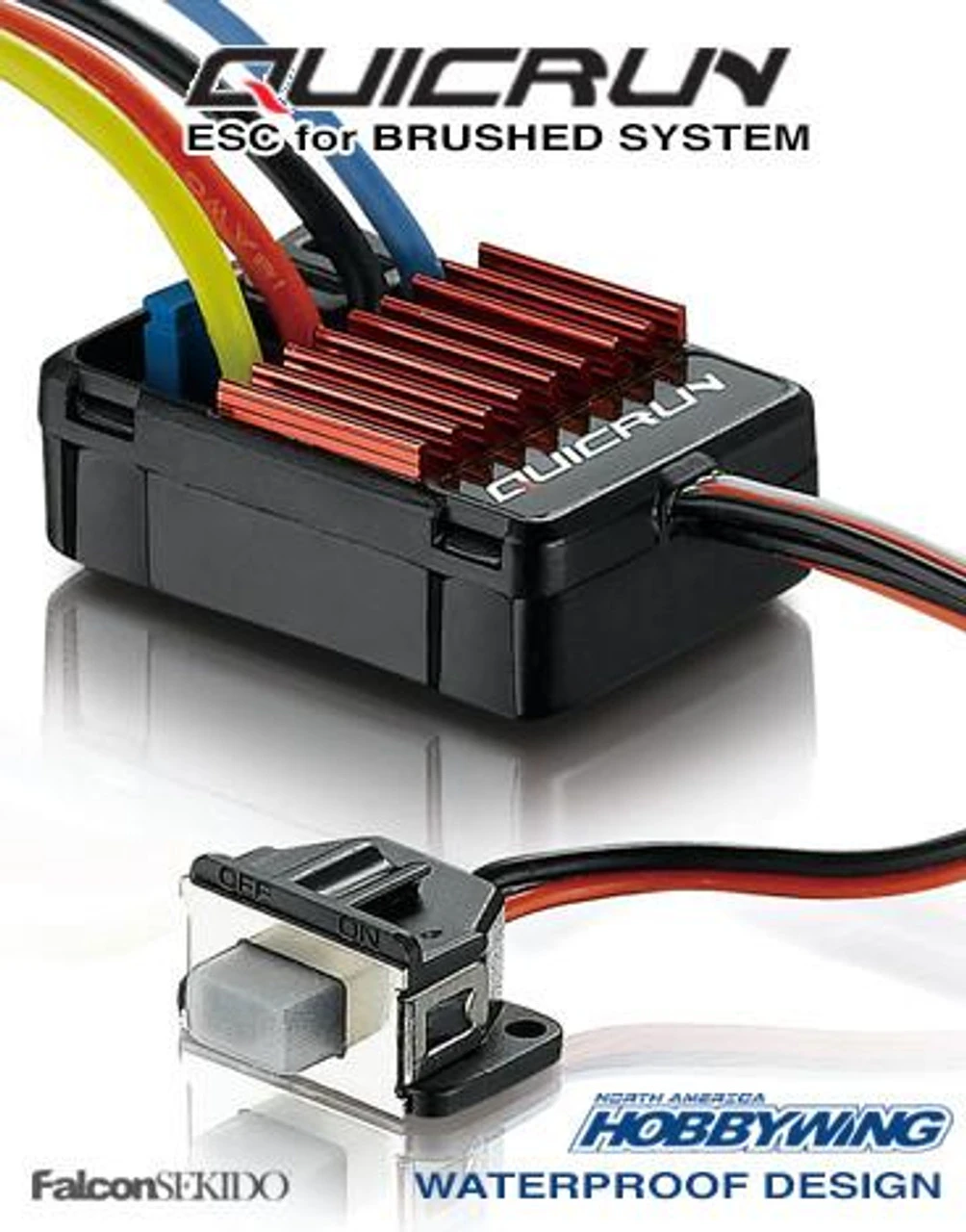

Hobbywing QuicRun 1625 Brushed ESC (1/18, 1/16)

This is a Hobbywing QuicRun Brushed ESC suitable for 1:16 and 1:18 Sport with the stability of being both waterproof and dust-proof for all weather races.

Features:

• Waterproof and dustproof, suitable for races in all weather conditions.
• Small size with built-in capacitor module.
• Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.

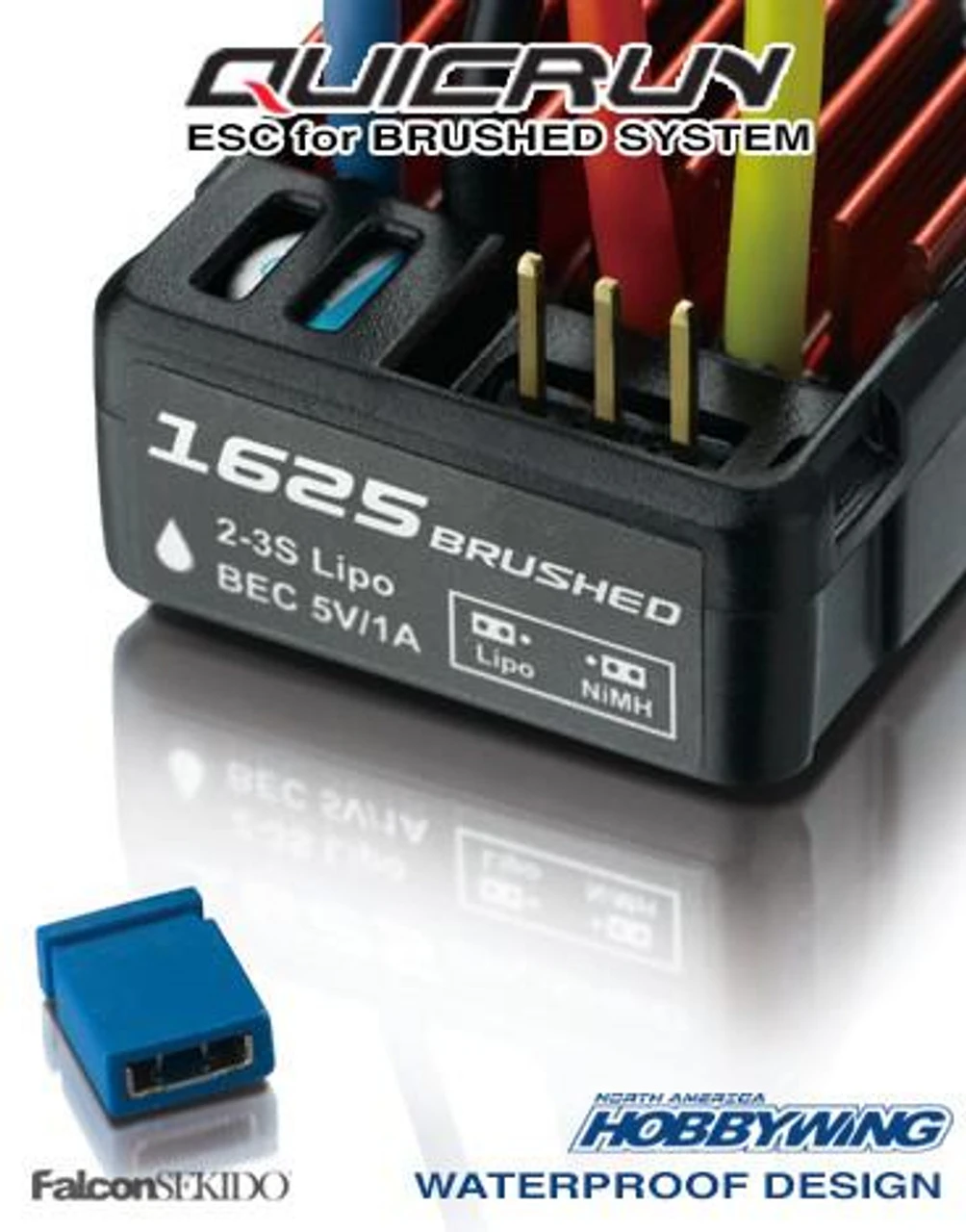

• ESC parameters are easy to set with jumpers.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection.
• Risk Free Manufacturers limited warranty

Specifications:
Fwd Cont. Current/Peak Current/Resistance: 25A/100A/0.003Ω
Rev Cont. Current/Peak Current/Resistance: 25A/100A/0.003Ω
Motor Type Supported: Brushed Motor
Car Applicable: 1:16 &1:18 On-Road/Off-Road/Buggy/Monster
Suitable Battery Brushed Motor Limit:

• For 2S LiPo or 6 Cell NiMH:
• 280、370 or 380 Size Motor RPM<30000 @7.2V
• For 3S LiPo or 9 Cell NiMH:
• 280、370 or 380 Size Motor RPM<20000 @7.2V

BEC Output: 1A/5V (Linear Mode)
PWM Frequency: 1 KHz
Size/Weight: 34(L)*24(W)*14(H) / 23.5g
Running Modes: Forward/Reverse/Brake

• Resources

  • Manual for the Hobbywing QuicRun Brushed ESC

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
