Hobbywing QuicRun 10BL120 120A Sensored Brushless ESC, 30125000

Product Description

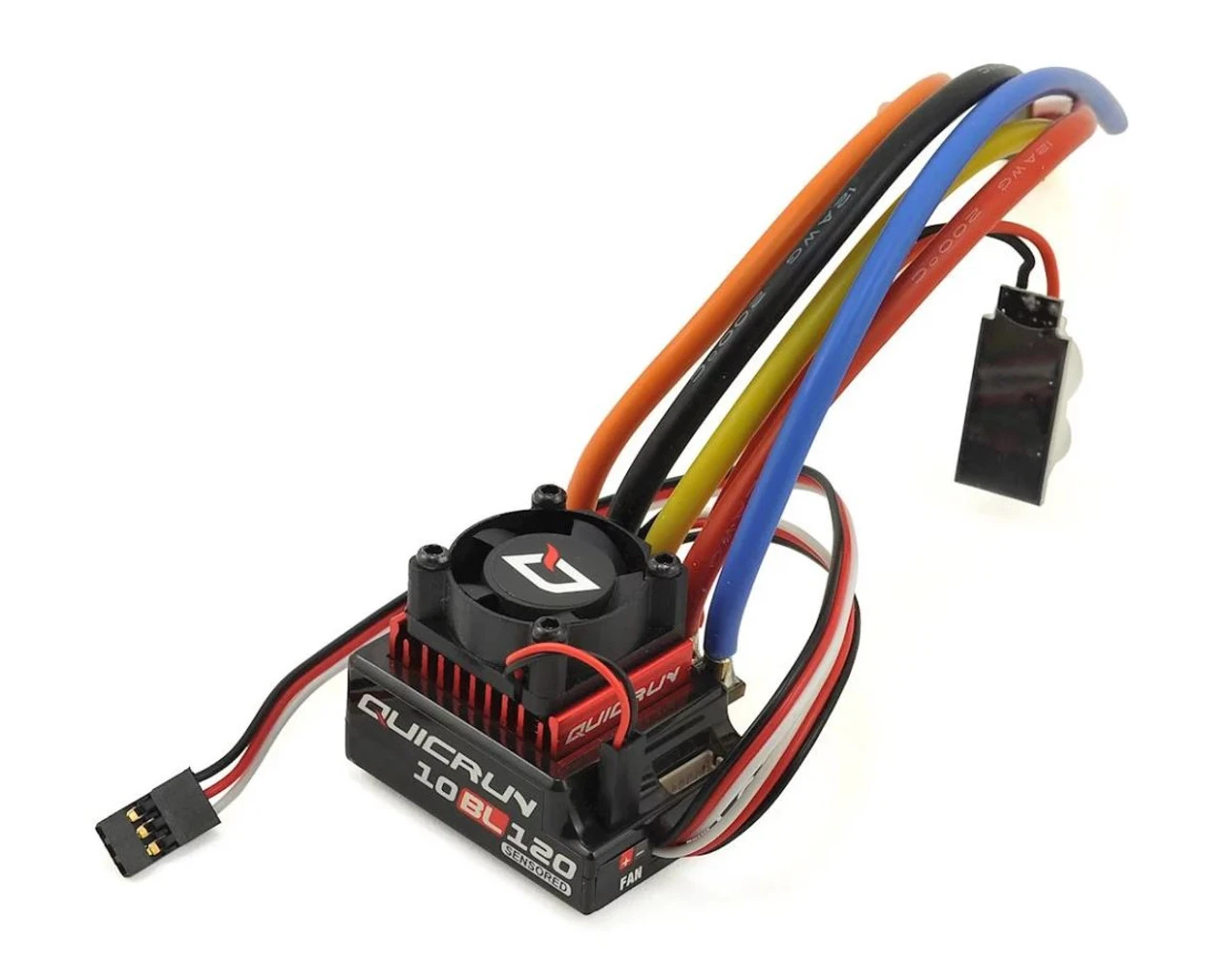

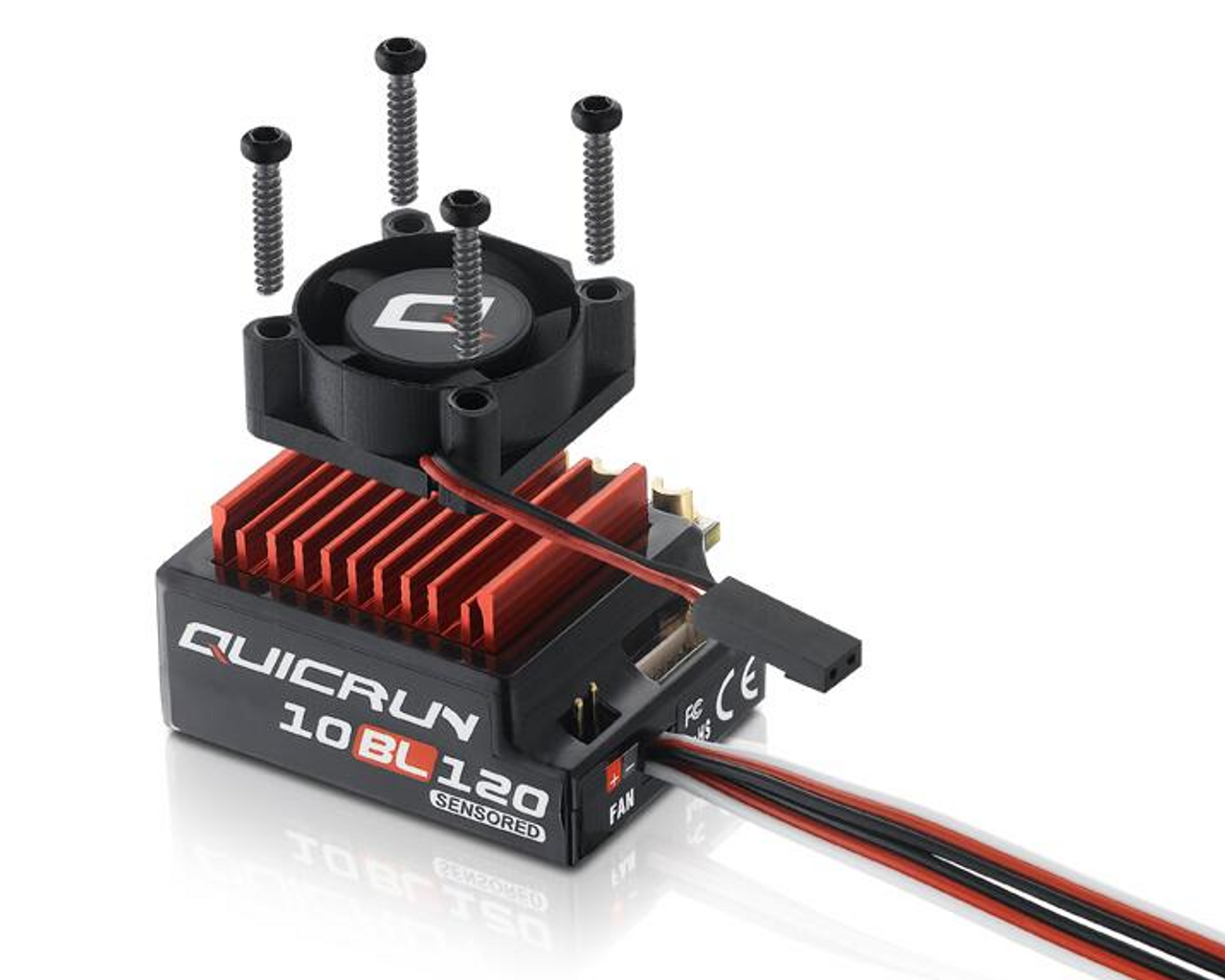

Hobbywing QuicRun 10BL120 120A Sensored Brushless ESC, 30125000

High performance, reliable, race-ready ESC. The compact size is suitable for various car chassis’. The built-in auto identification system recognizes sensored or sensorless brushless motors. Core competition program for excellent control feel and multiple programmable items.

• 8 steps of timing adjustments
• 4 steps of maximum brake force adjustments
• 8 steps of drag brake force adjustments
• 4 steps of initial brake force adjustments
• 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks.

Multiple protections include:
Low voltage cut-off protection for Lipo or NiMH battery
Over-heat protection
Throttle signal loss protection
Motor Lock-up protection.

One-button to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with optional device – the portable Digital LED Program Card which is especially convenient for outdoor use.

Specifications:
Continuous Current: 120A
Peak Current: 760A
Applications: 1/10 Touring Car, Buggy, F1, Drift Car

Motor Limits:
4-6 Cell NiMh OR 2s LiPo: >3.5T (1/10 On Road), >4.5T (1/10 Off Road)
8-9 Cell NiMh OR 3s LiPo: >8.5T (1/10 On Road), >10.5T (1/10 Off Road)
Battery Types: 3-9 Cell NiMh, 2-3S LiPo
BEC Output: 6V @ 3A Linear BEC
Dimensions: 43x36x33mm (w/Fan)
Weight: 105g (w/Wires & Fan)

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
