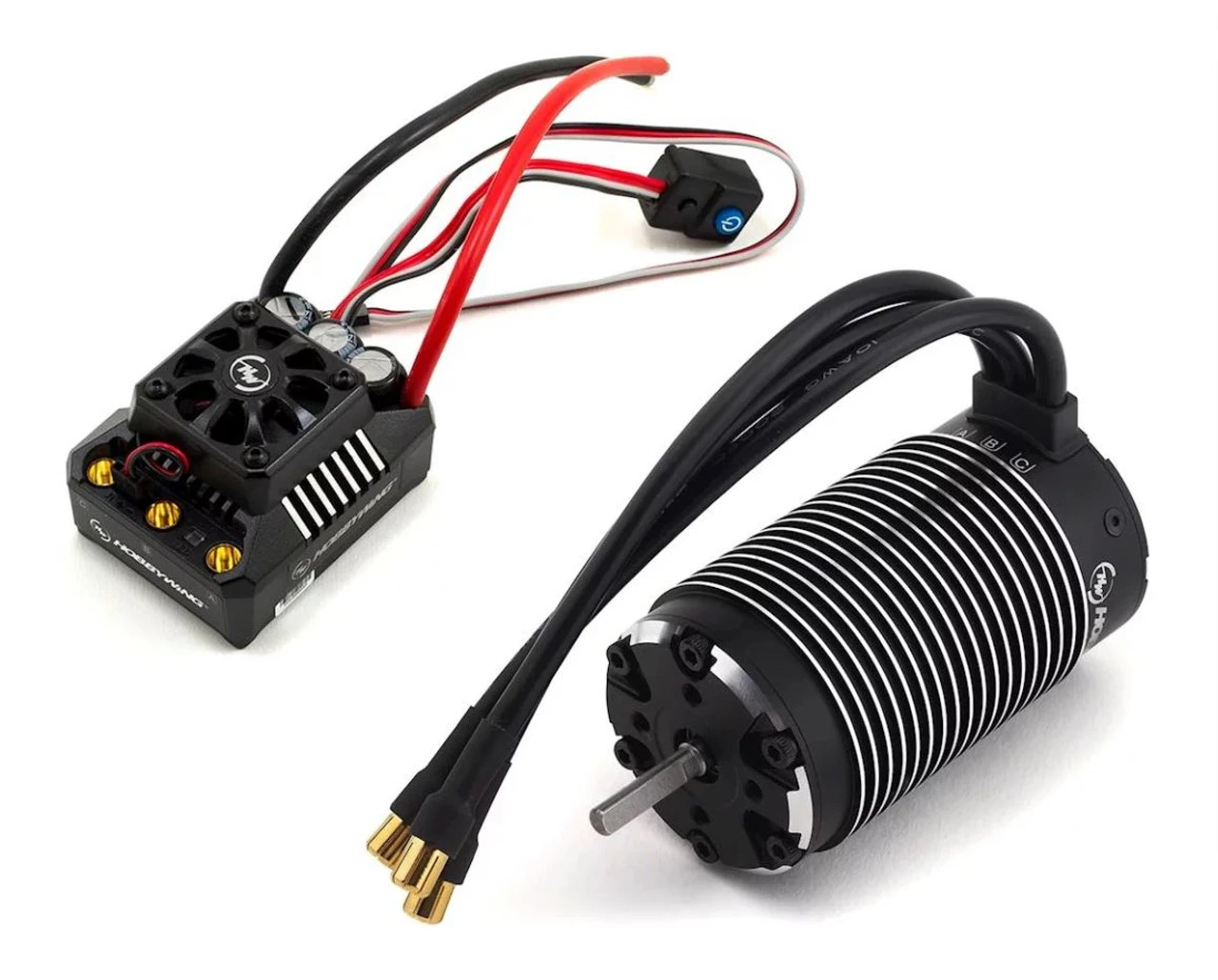

Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo W/4985SL (1650kV)

Specifications:

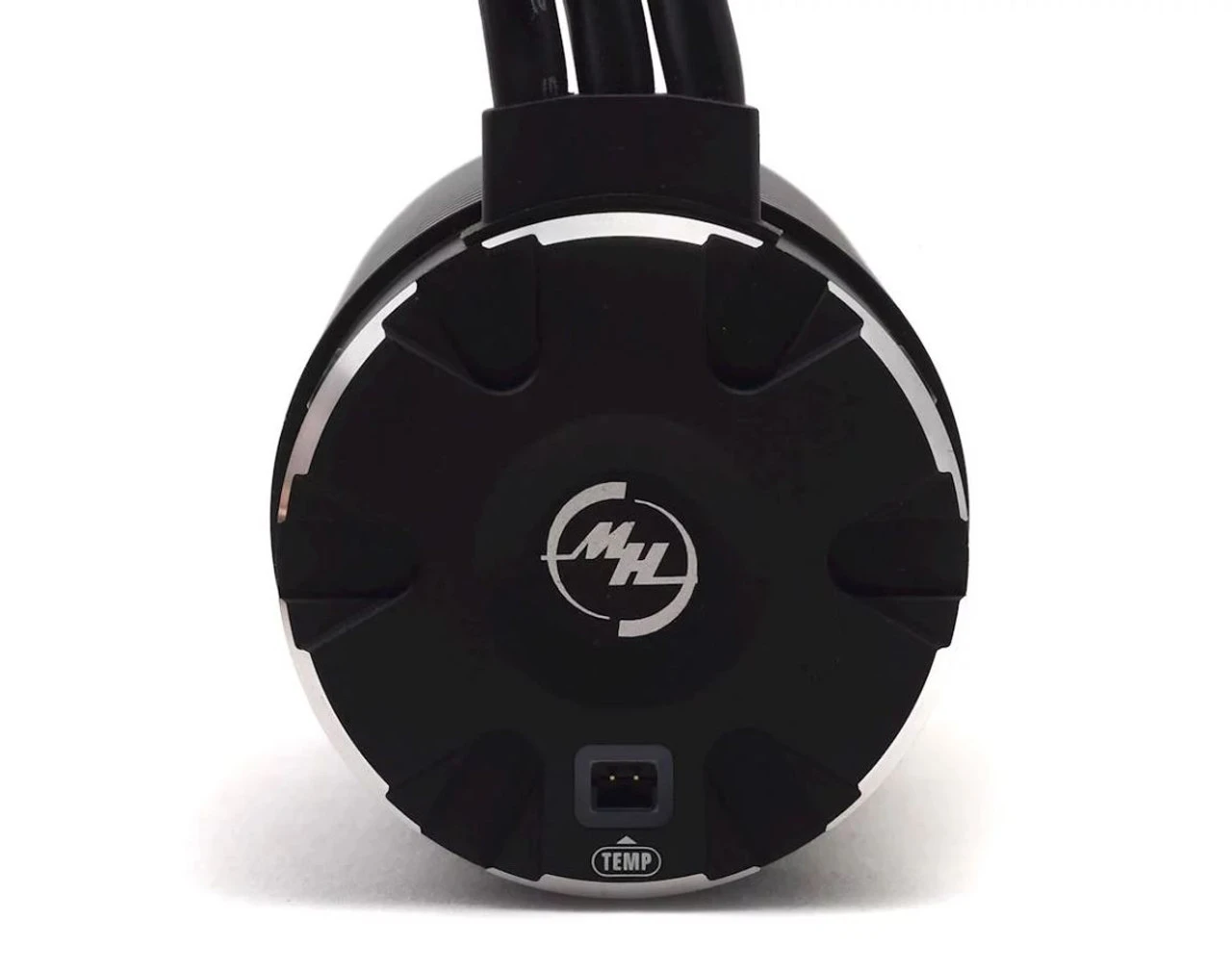

• Motor:
• Model: 4985SL-1650KV
• Pole: 4
• KV (No-load): 1650KV
• Resistance: 0.0053 Ω
• Current (No-load): 5.4 A
• Max. Output Power: 5700 W
• Current at the point of M.O.P: 160 A
• Motor Diamter: 49mm
• Motor Length: 86.5mm
• Shaft Diameter: 5.0mm
• Shaft Length: 21.5mm
• LiPo Cells: 3-6
• Weight: 587g (20.71oz)
• Applications: 1/6th & 1/7th RC Vehicles
• ESC:
• Continuous Current: 160A

• Peak Current: 1,050A
• Motor Type: Sensorless Brushless Motor
• Applications: 1/6th Touring Car, Buggy, Truggy and Truck
• Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
• LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
• BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
• Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
• Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
• Size (LxWxH): 70x56x46.5mm
• Weight: 240g
• Programming Port: FAN /PRG Port

Includes:
(1) Ezrun MAX6 ESC
(1) Ezrun Max Motor 4985SL 1650KV
(1) 8 AWG 200C Red Power Wire
(1) 10 AWG 200C Black Power Wire
(1) Double Sided Tape
(2) Heat Shrink Tubes
(1) User’s Manual
(1) Hobbywing Decal
