Hobbywing EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo W/56113SL (800kV)

Original price was: $369.99.Current price is: $96.99.

SKU: HWI38010600 Categories: Electric Motors, Motors, ESCs & Accessories Tags: Electric Motors, Hobbywing

High quality products, hassle-free returns.
Multiple payment methods, 100% payment security
Effortless solutions, excellent customer care.
7 Days of Hassle-Free Returns

Description
Reviews (0)

Product Description

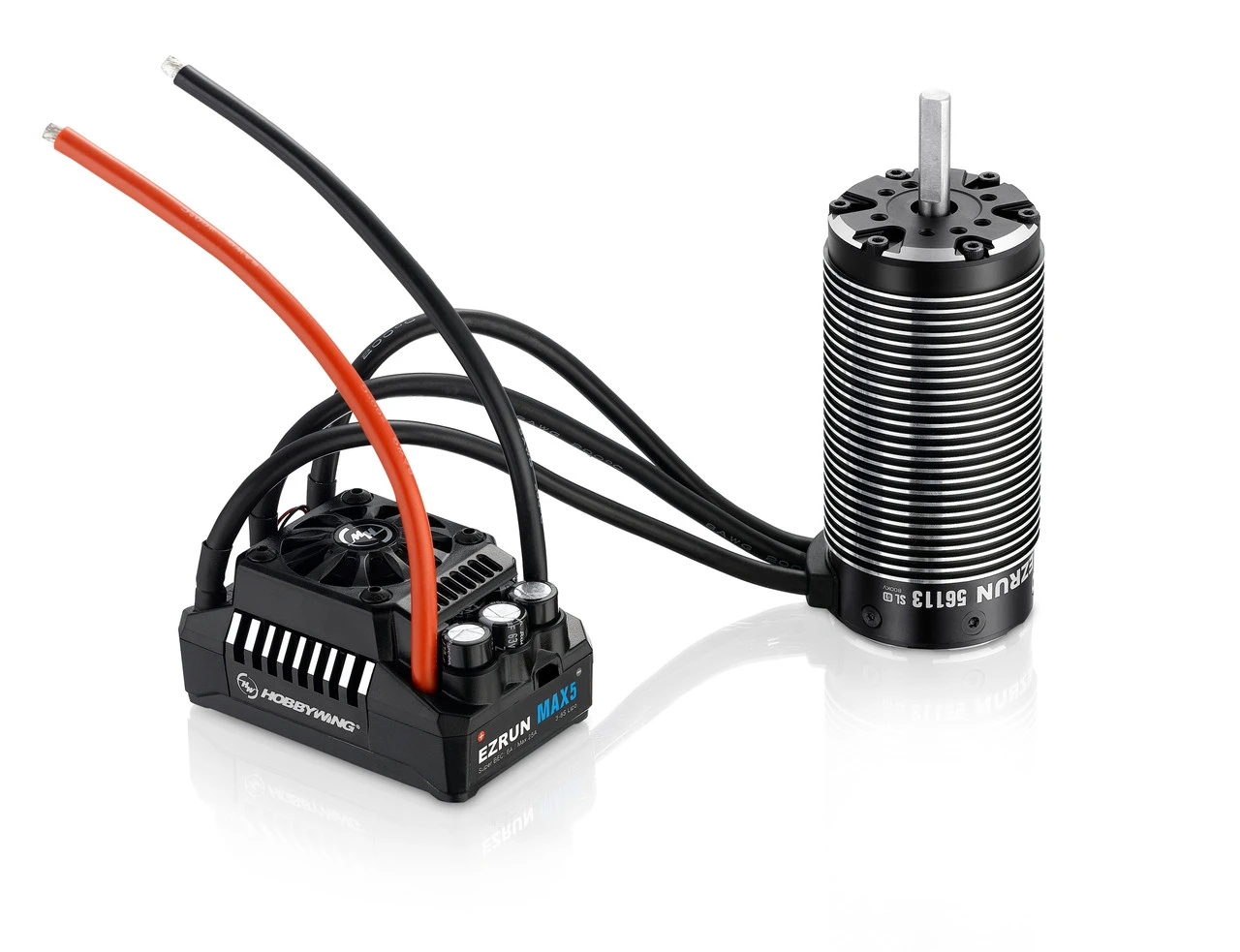

Hobbywing EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo w/56113SL (800kV)

EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo includes the 56113SL 1/5 scale, 800kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.

Features

Strong Power: With a fast acceleration response and a rock-solid, stable output, the EZRUN 56113 motor can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain.
High Efficiency: Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% (an industry-leading level).
MAXIMIZED EFFECT: When pairing the EZRUN 56133 motor with the Hobbywing EZRUN MAX5 ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band. (*Note: MAX5 pairs with 5687/56113, MAX6 pairs with 4985)
Easy programmable features by WiFi Module (IOS & Android) or LCD Program box – Purchase separately

Specifications:

Motor:

Model: 56113-800KV
Pole: 4
KV (No-load): 800KV
Resistance: 0.00049 Ω
Current (No-load): 3.2 A
Max. Output Power: 5800 W
Current at the point of M.O.P: 200 A
Motor Diameter: 56mm
Motor Length: 113mm
Shaft Diameter: 8.0mm
Shaft Length: 31.0mm
LiPo Cells: 3-8
Weight: 1210g (42.68oz)
Application: 1/5th RC Vehicles, Truck/Dragster

ESC:

Continuous Current: 200A
Peak Current: 1,300A
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Applications: 1/5th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 8S LiPo/24-Cell NiMH: KV ≤1000 (58110 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 93.35×58.12×47.81mm
Weight: 342g
Programming Port: FAN /PRG Port

Includes

(1) Ezrun MAX5 ESC
(1) EzRun 56113 800KV Motor
(3) 10 AWG, 200C Black wires for a brushless motor
(1) 8 AWG 200C RED power wire
(1) 10 AWG 200C Black power wire
(1) Double side tape
(2) Heat shrink tube
User’s manual
A HOBBYWING decal

Resources
- Hobbywing Xerun User Manual for the EZRun Max5/Max6

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
