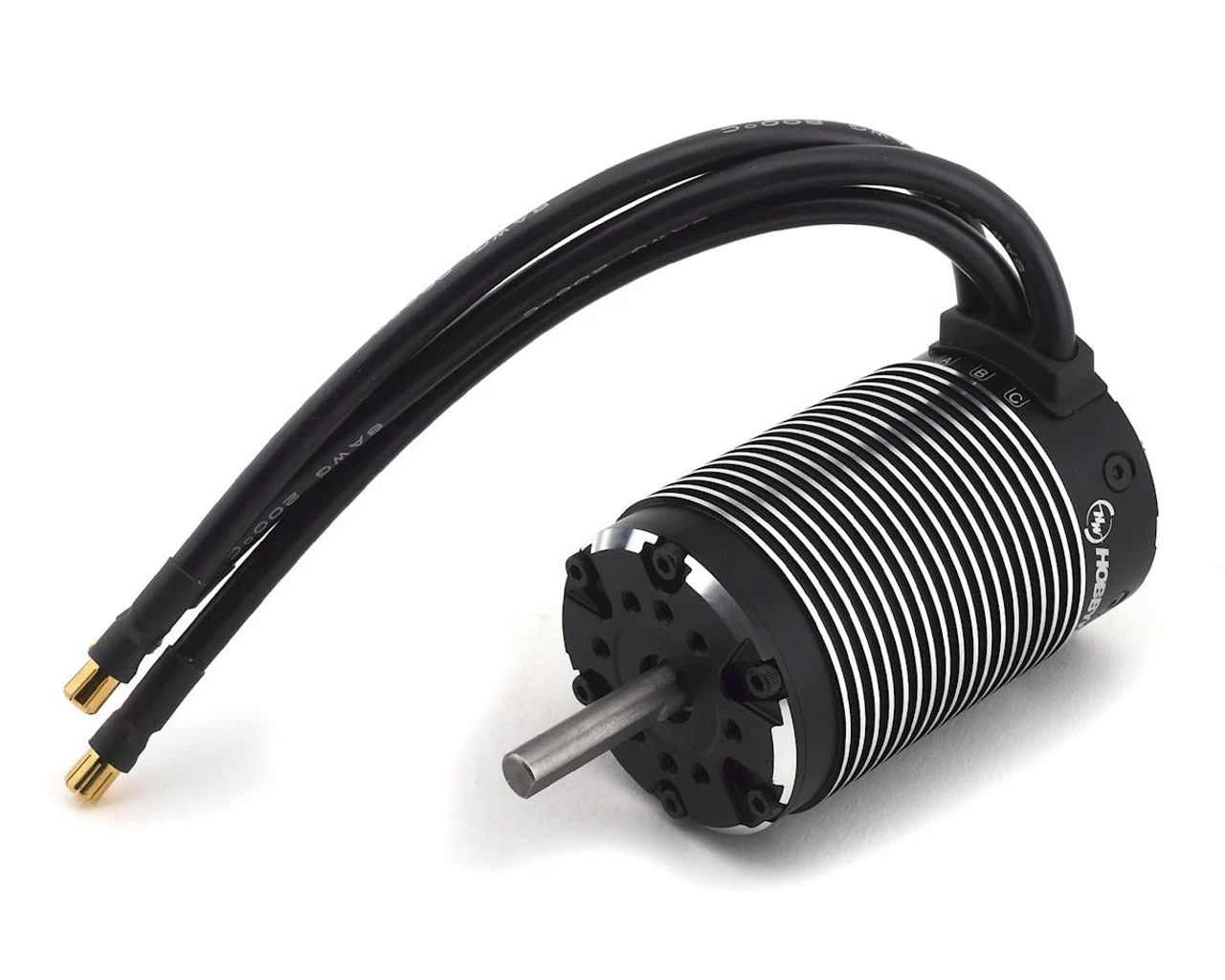

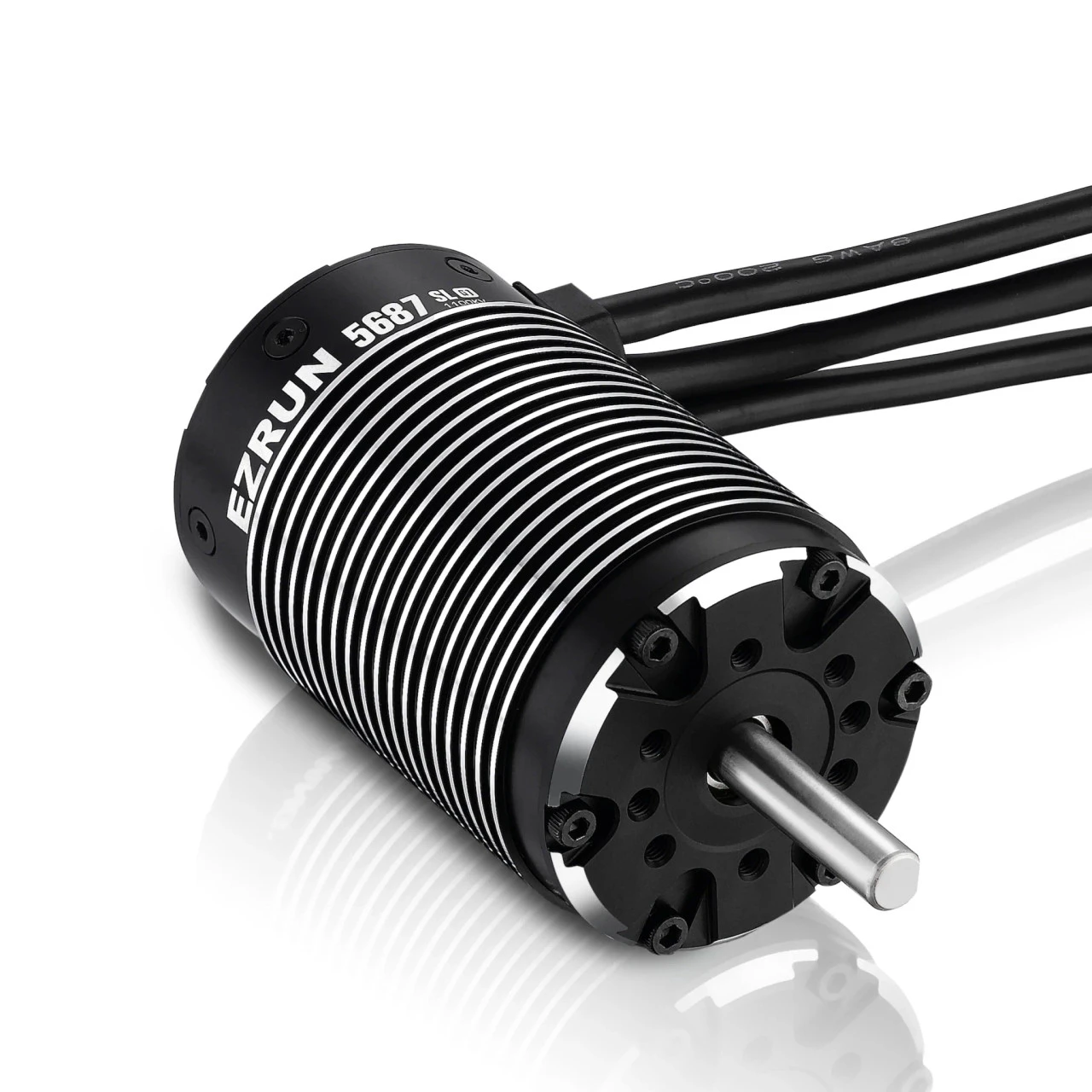

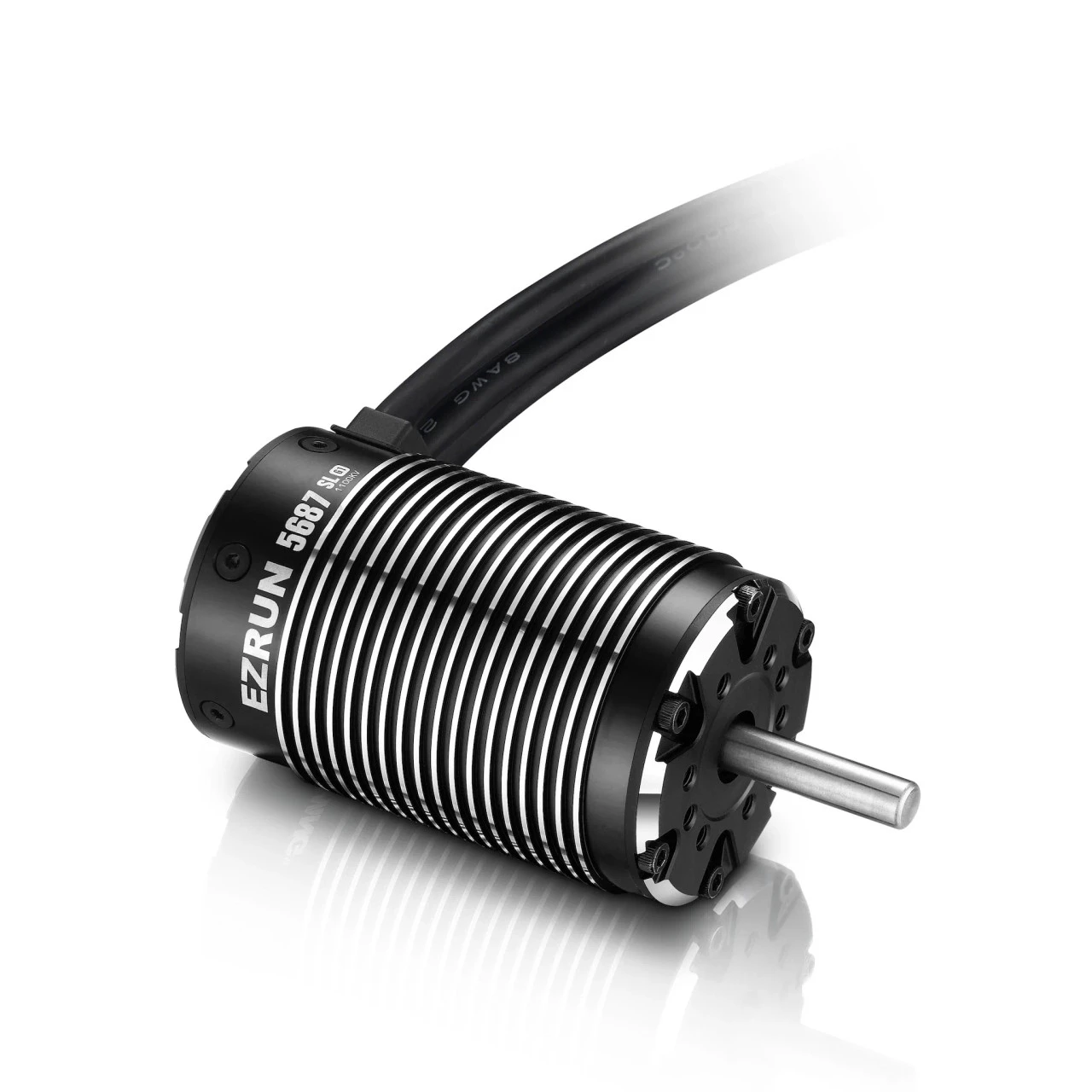

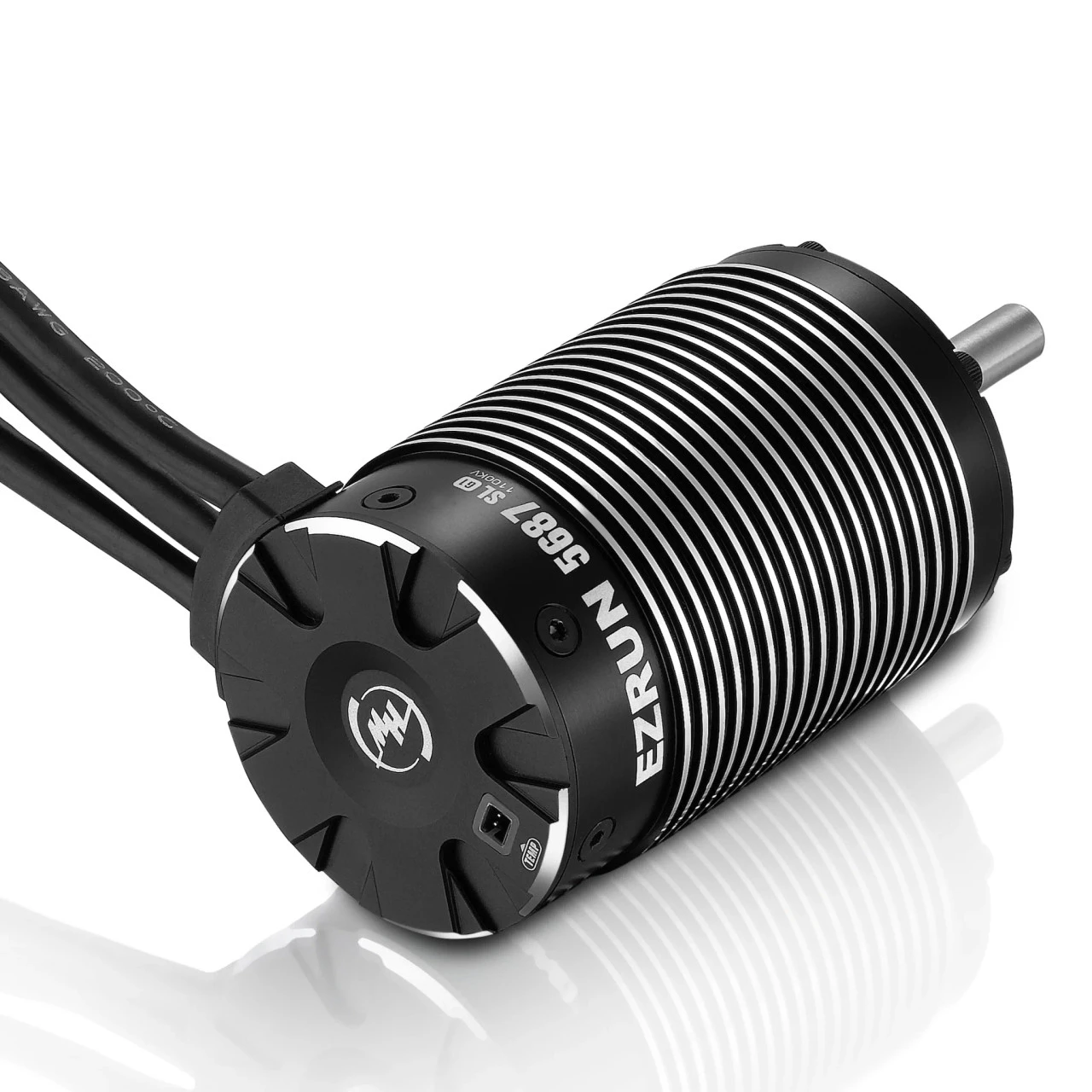

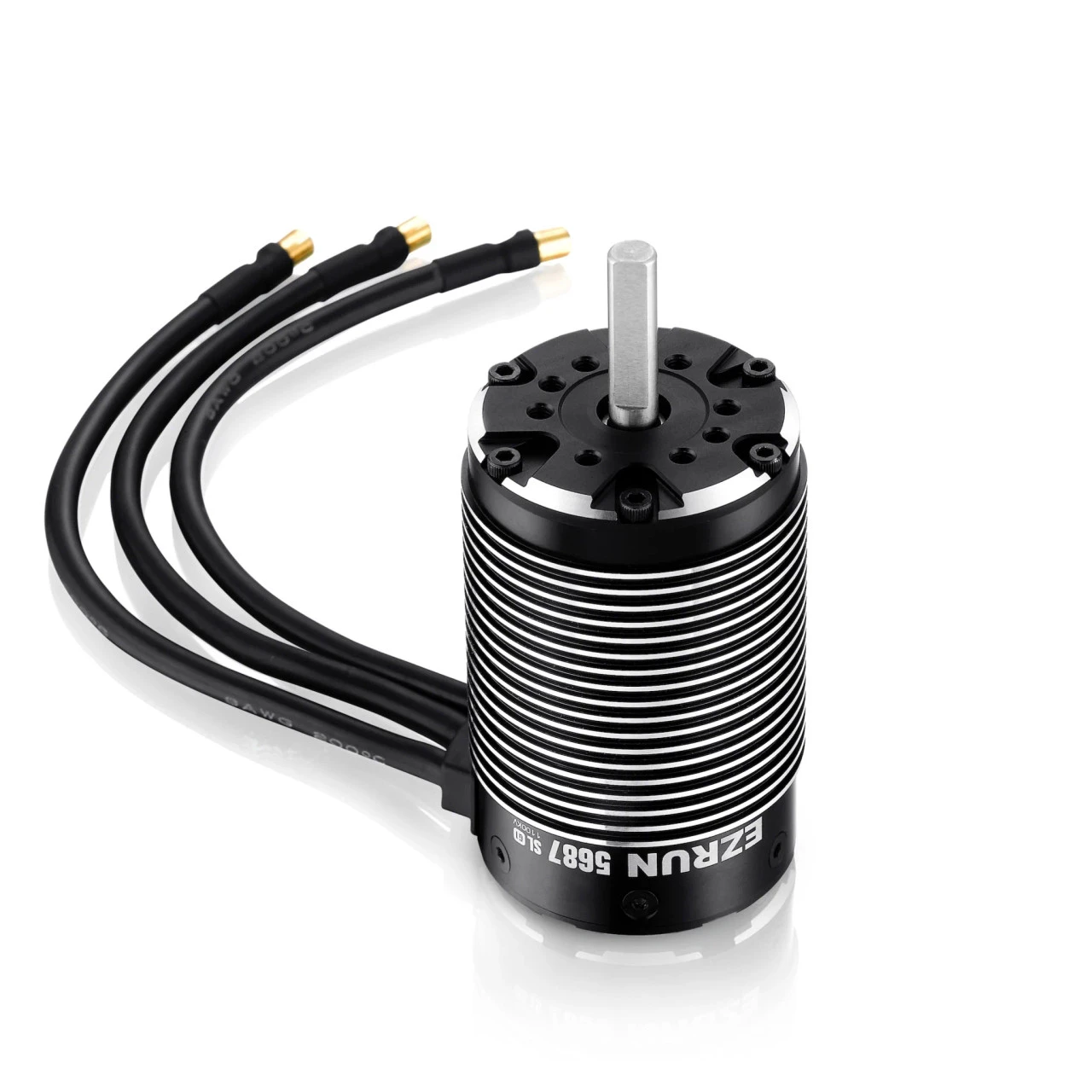

Hobbywing EZRUN 5687SL 4-Pole 1/5 Scale Sensorless Brushless Motor (1100kV)

Product Description

Hobbywing EZRUN 5687SL 4-Pole 1/5 Scale Sensorless Brushless Motor (1100kV)



MAX SPEED & POWER
for Uber-sized vehicle (1/5, 1/6, 1/7), the Hobbywing EZRun 5687SL 1/5 scale, 1100kV motor is a great option for high-end, aggressively powered, large scale 8S builds.

Features:

• 4 pole rotor for high torque, fast acceleration response and stable power output.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure,0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/MAX5 ESC.

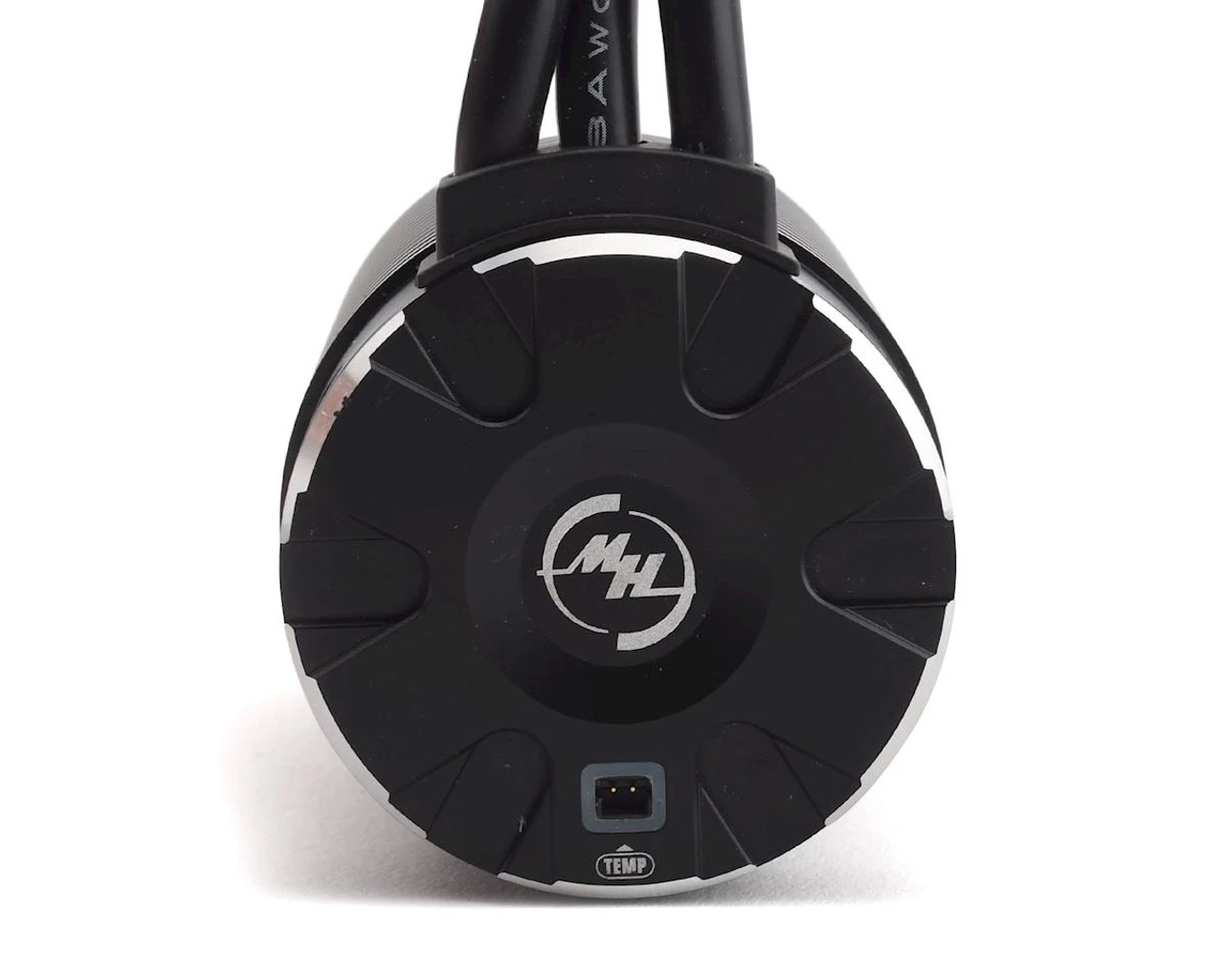

• Temperature sensor port provides all-round protection to the power system.

Specifications:
Model: 5687SL-1100KV
Pole: 4
KV (No-load): 1100KV
Resistance: 0.0041 Ω
Current (No-load): 4.1 A
Max Output Power: 5800 W
Current at the point of M.O.P: 200 A

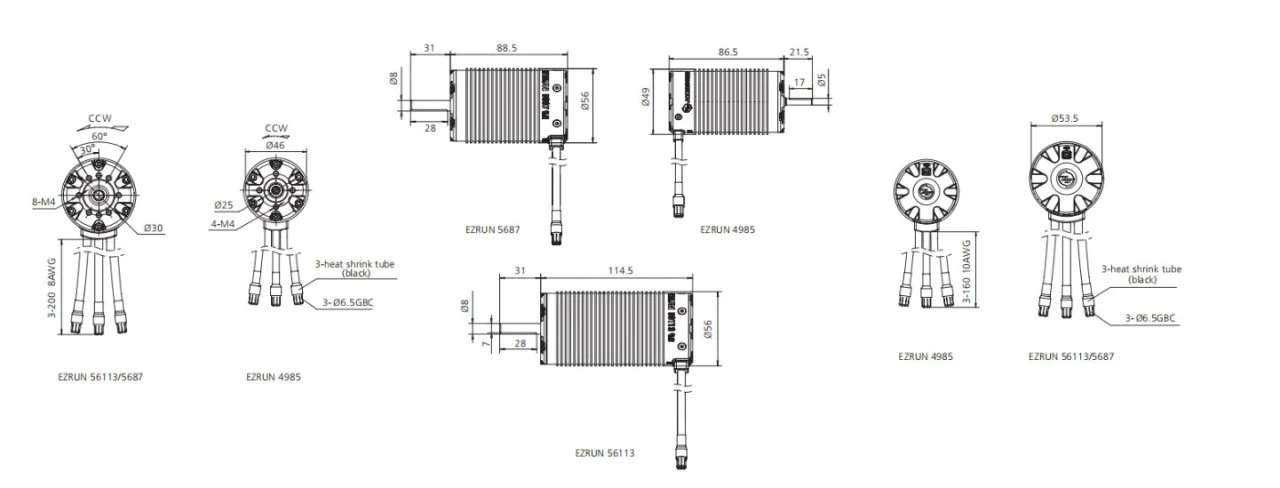

Motor Diameter: 56mm
Motor Length: 87mm
Shaft Diameter: 8.0mm
Shaft Length: 31.0mm
Bullet Connector: 6.5mm
Wire Gauge: 8AWG
LiPo Cells: 3-8
Weight: 916g (32.21oz)

Includes
(1) Ezrun MAX Motor 1100KV
HOBBYWING decal
Product manual

• Resources

  • Hobbywing EZRUN Max Manual
