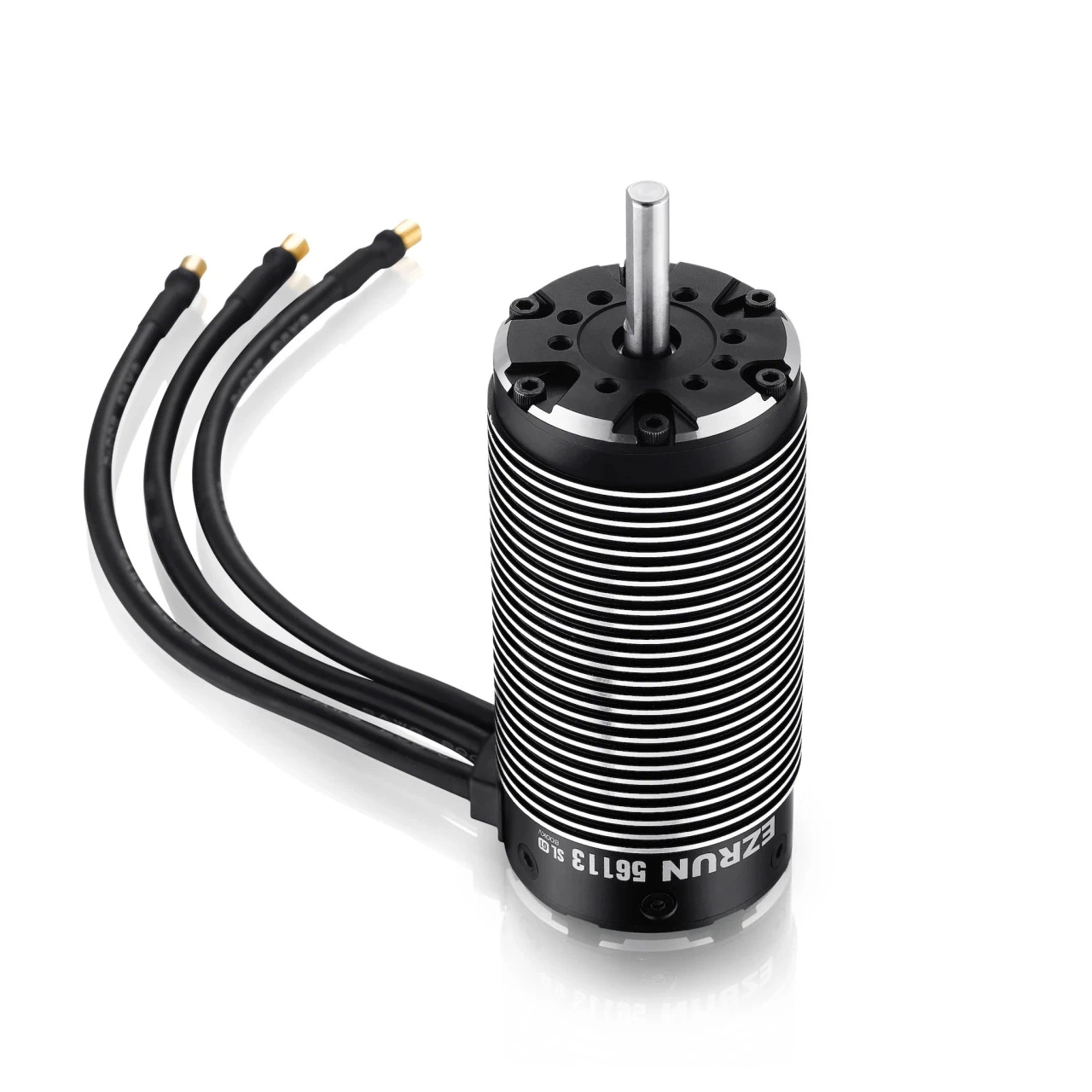

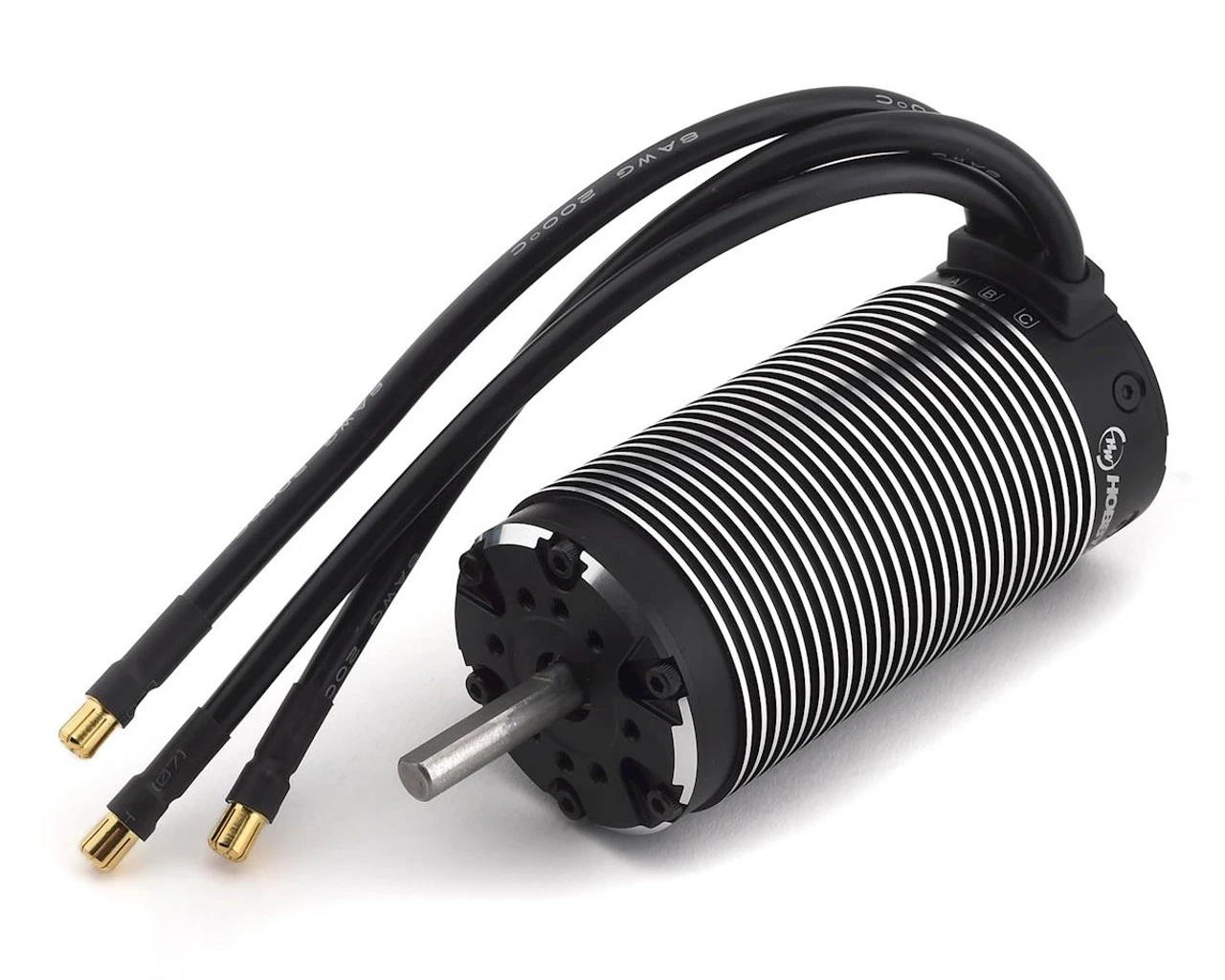

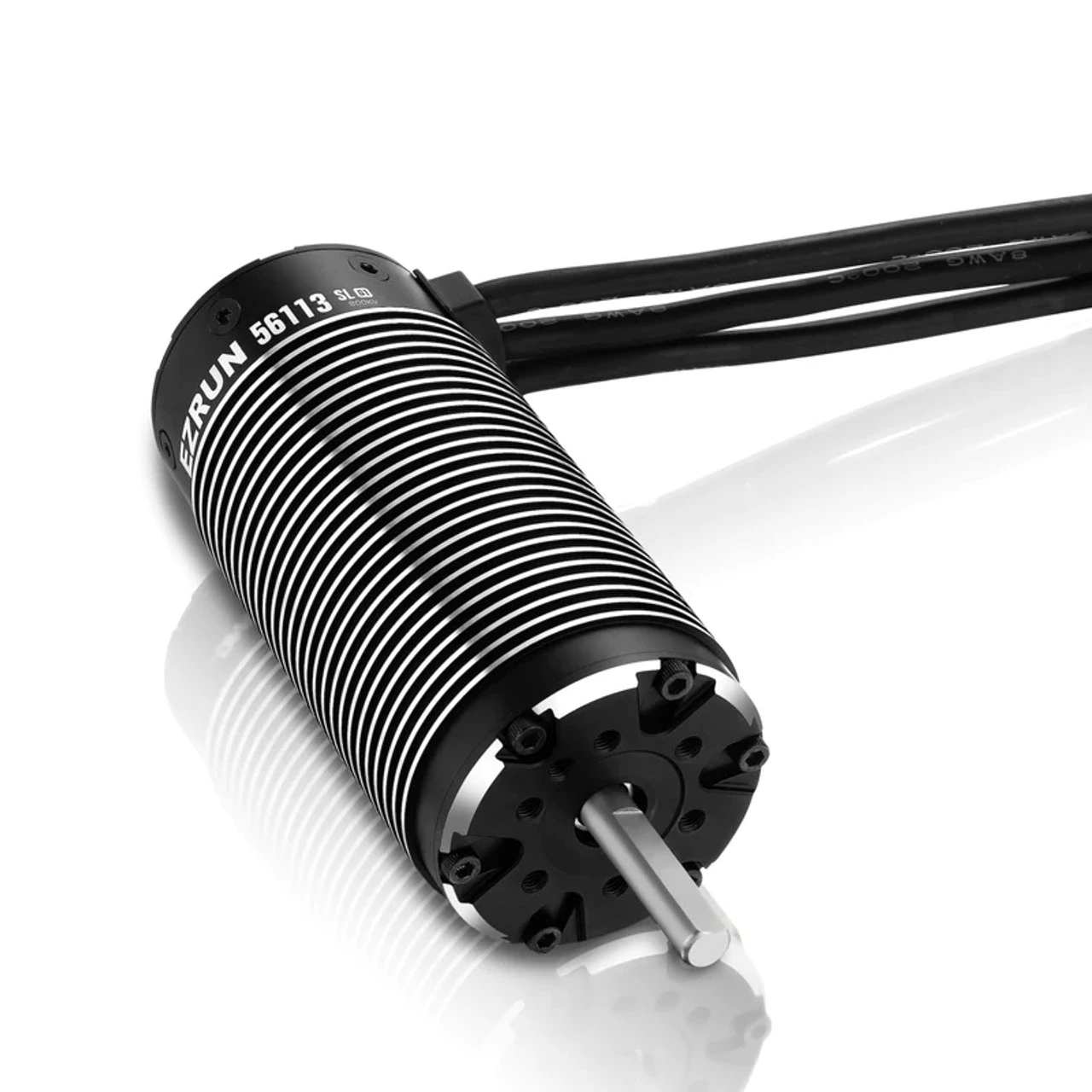

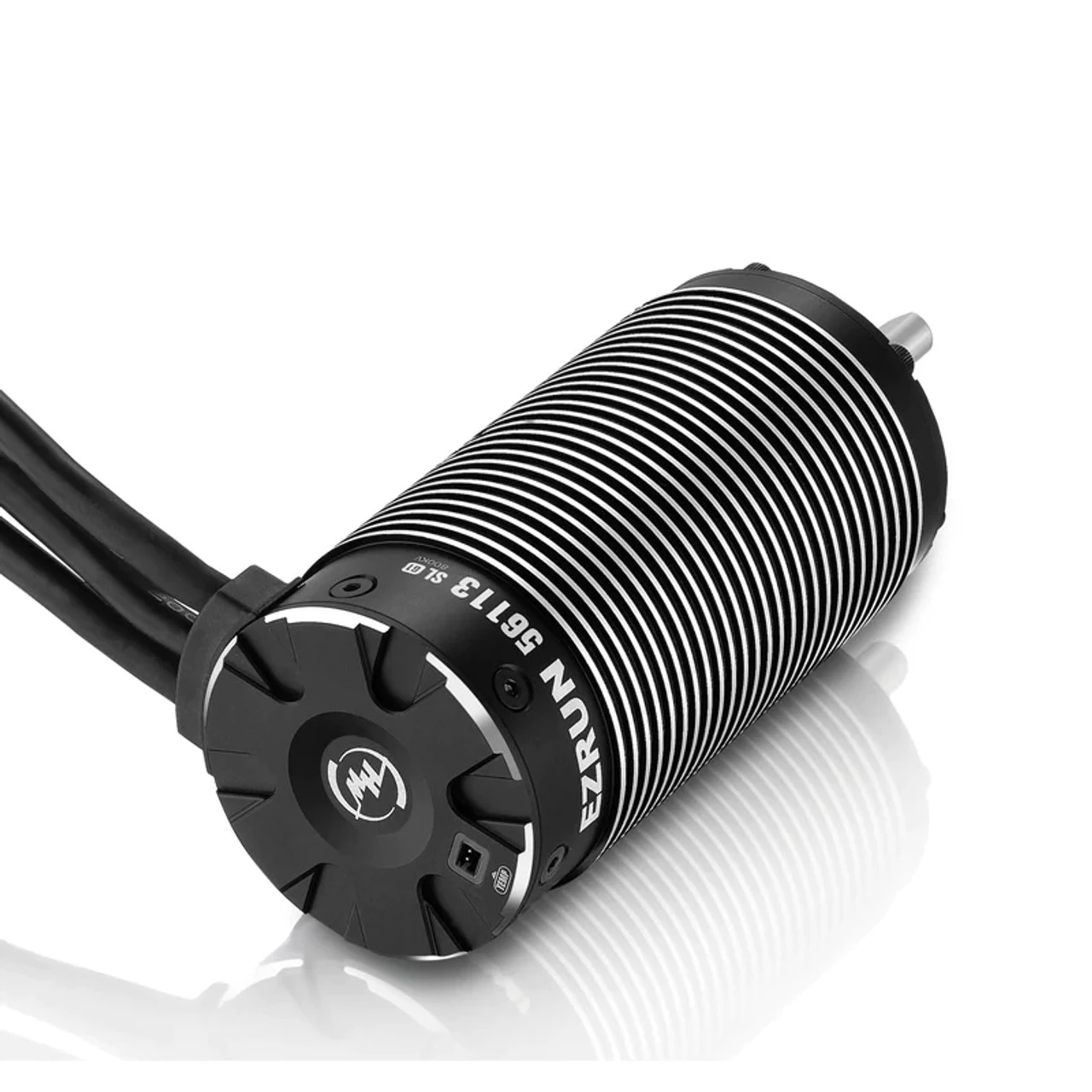

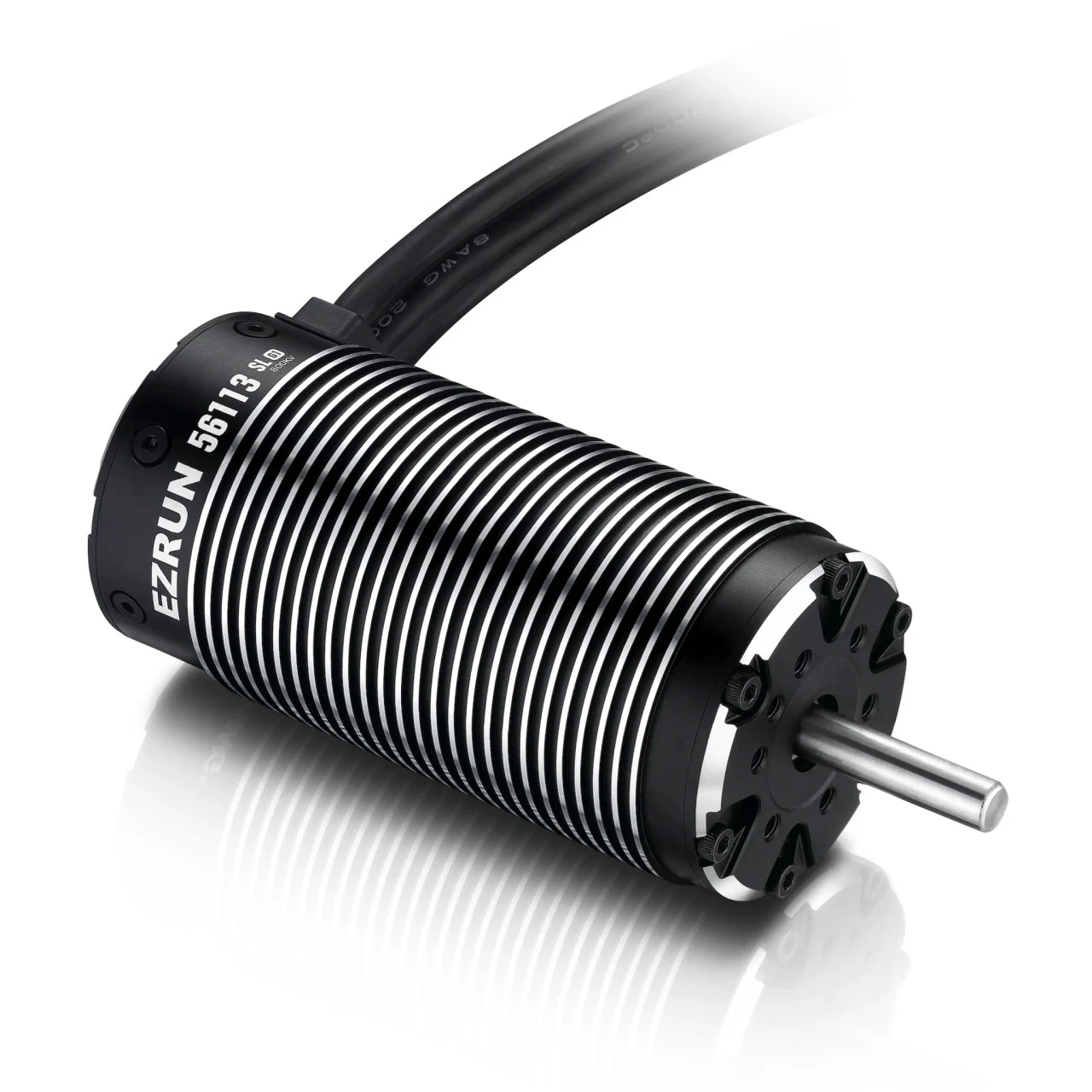

Hobbywing EZRUN 56113SL 4-Pole 1/5 Scale Sensorless Brushless Motor (800kV)

Product Description

Hobbywing EZRUN 56113SL 4-Pole 1/5 Scale Sensorless Brushless Motor (800kV)



Strong Power

With a fast acceleration response and a rock-solid, stable output, the EZRUN 4985/5687/56113 motor can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain.

High Efficiency

Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% (an industry-leading level).

Great Construction

The use of CNC-machined hard anodized aluminum case, ultra-thin silicon steel laminations, heat-resistant oxygen-free double insulated windings, high quality Japanese bearings, rotor with a strong structure and output shaft made from high quality polished alloy steel guarantees outstanding performance and super durability.

Features:

• 4 pole rotor for high torque, fast acceleration response and stable power output.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure,0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX5 ESC.

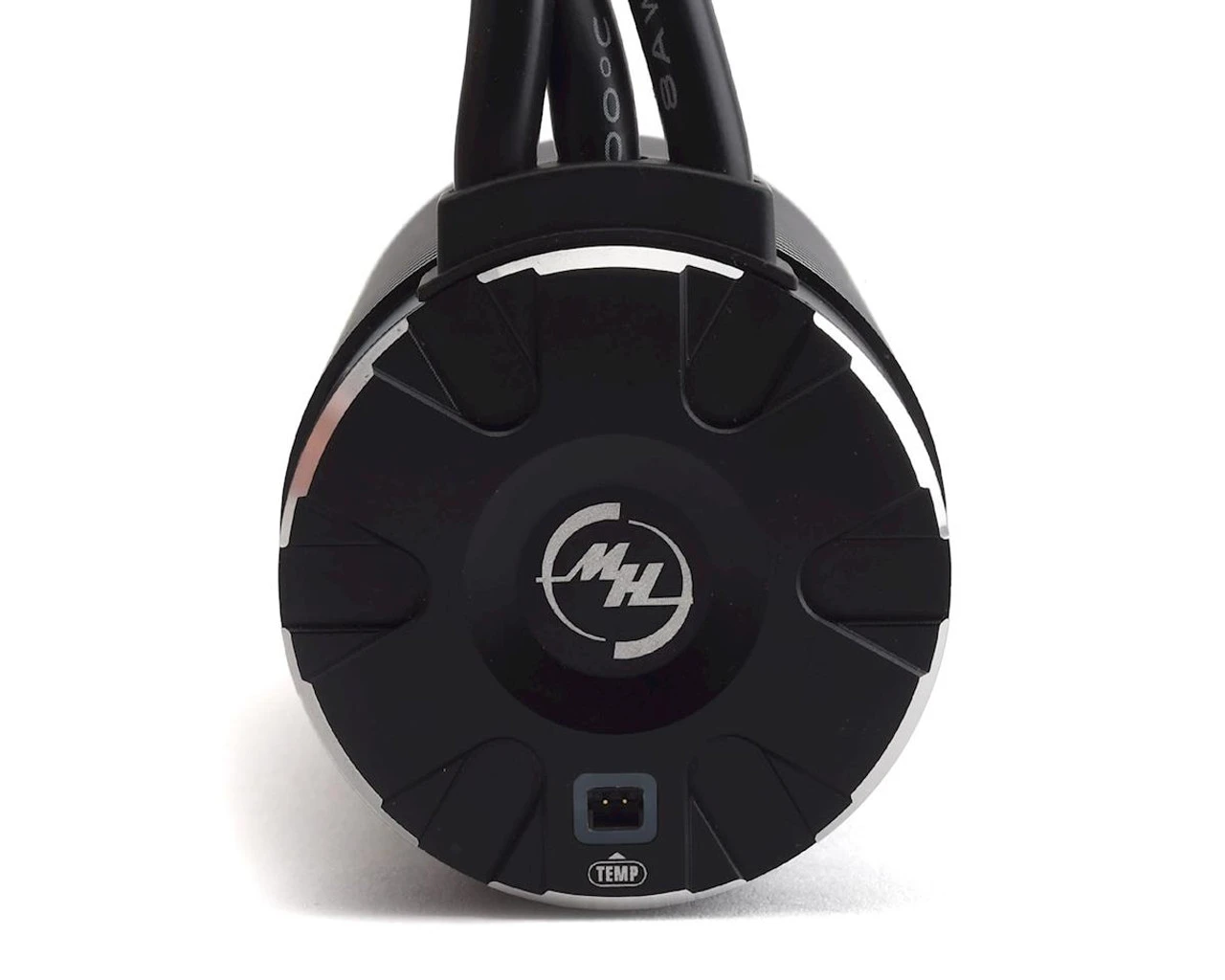

• Temperature sensor port provides all-round protection to the power system.
• High quality stainless steel output shaft, High precision bearings for high durability and smoothness

Specifications:
Model: 56113-800KV
Pole: 4
KV (No-load): 800KV
Resistance: 0.00049 Ω
Current (No-load): 3.2 A
Max. Output Power: 5800 W
Current at the point of M.O.P: 200 A
Motor Diameter: 56mm
Motor Length: 113mm
Shaft Diameter: 8.0mm
Shaft Length: 31.0mm
LiPo Cells: 3-8
Weight: 1210g (42.68oz)
Application: 1/5th RC Vehicles, Truck/Dragster
Suitable ESC: Ezrun MAX5 ESC

Includes
(1) Ezrun MAX Motor 800KV
HOBBYWING decal
Product manual
