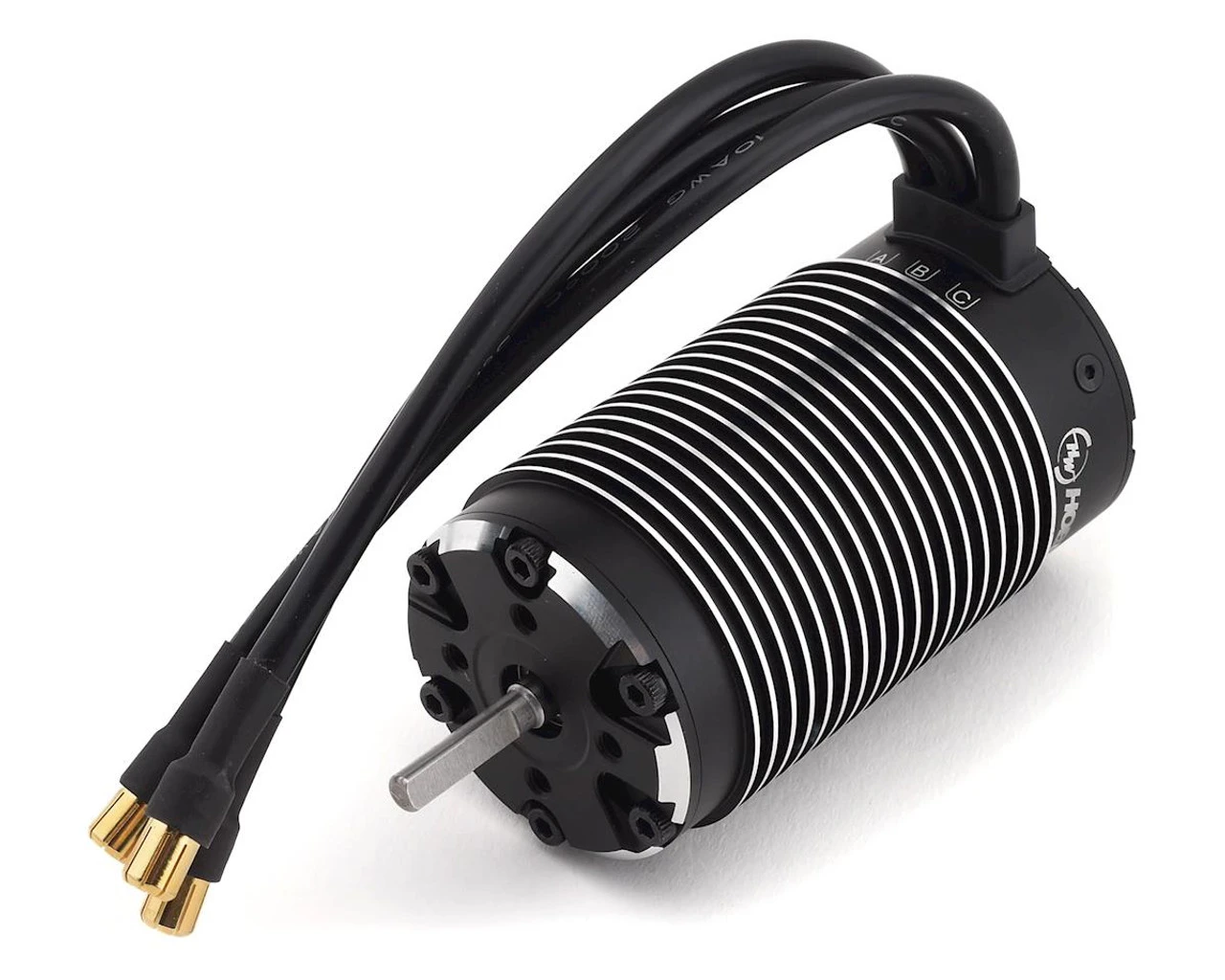

Hobbywing EZRUN 4985SL 4-Pole 1/6-1/7 Scale Sensorless Brushless Motor (1650KV)

Product Description

Hobbywing EZRUN 4985SL 4-Pole 1/6-1/7 Scale Sensorless Brushless Motor (1650KV)



MAX SPEED & POWER
for Uber-sized vehicle (1/6, 1/7), the Hobbywing EZRun 4985SL 1/6 scale, 1650KV motor is a great option for high-end, aggressively powered, large scale builds.

Features:

• 4 pole rotor for high torque, fast acceleration response and stable power output.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure,0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/MAX5 ESC.
• Temperature sensor port provides all-round protection to the power system.

Specifications:
Model: 4985SL-1650KV
Pole: 4
KV (No-load): 1650KV
Resistance: 0.0053 Ω
Current (No-load): 5.4 A
Max Output Power: 5700 W
Current at the point of M.O.P: 160 A

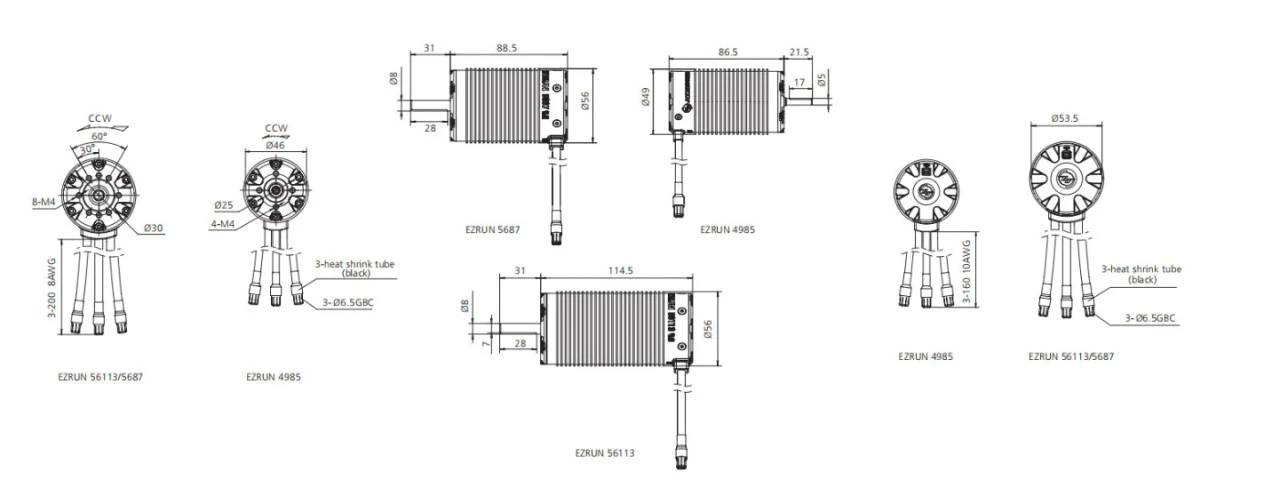

Motor Diameter: 49mm
Motor Length: 86.5mm
Shaft Diameter: 5.0mm
Shaft Length: 21.5mm
Bullet Connector: 6.5mm
Wire Gauge: 10AWG
LiPo Cells: 3-6
Weight: 587g (20.71oz)

Includes
(1) Ezrun MAX Motor 1650KV
HOBBYWING decal
Product manual

• Resources

  • Hobbywing EZRUN Max Manual
