Hobbywing EzRun 3652 G2 Sensorless Brushless Motor 4000kv

Product Description

Hobbywing EzRun 3652 G2 Sensorless Brushless Motor 4000kv

This is the Hobbywing EzRun 3652 G2 Sensorless Brushless Motor. This 4-pole power house is great for light-duty 2WD Short Course Truck, Truck and Monster Truck applications.

Note: Images are for illustrative purposes only.

Features:

• Innovative 4-pole-8-magnet “staggered pole” rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.

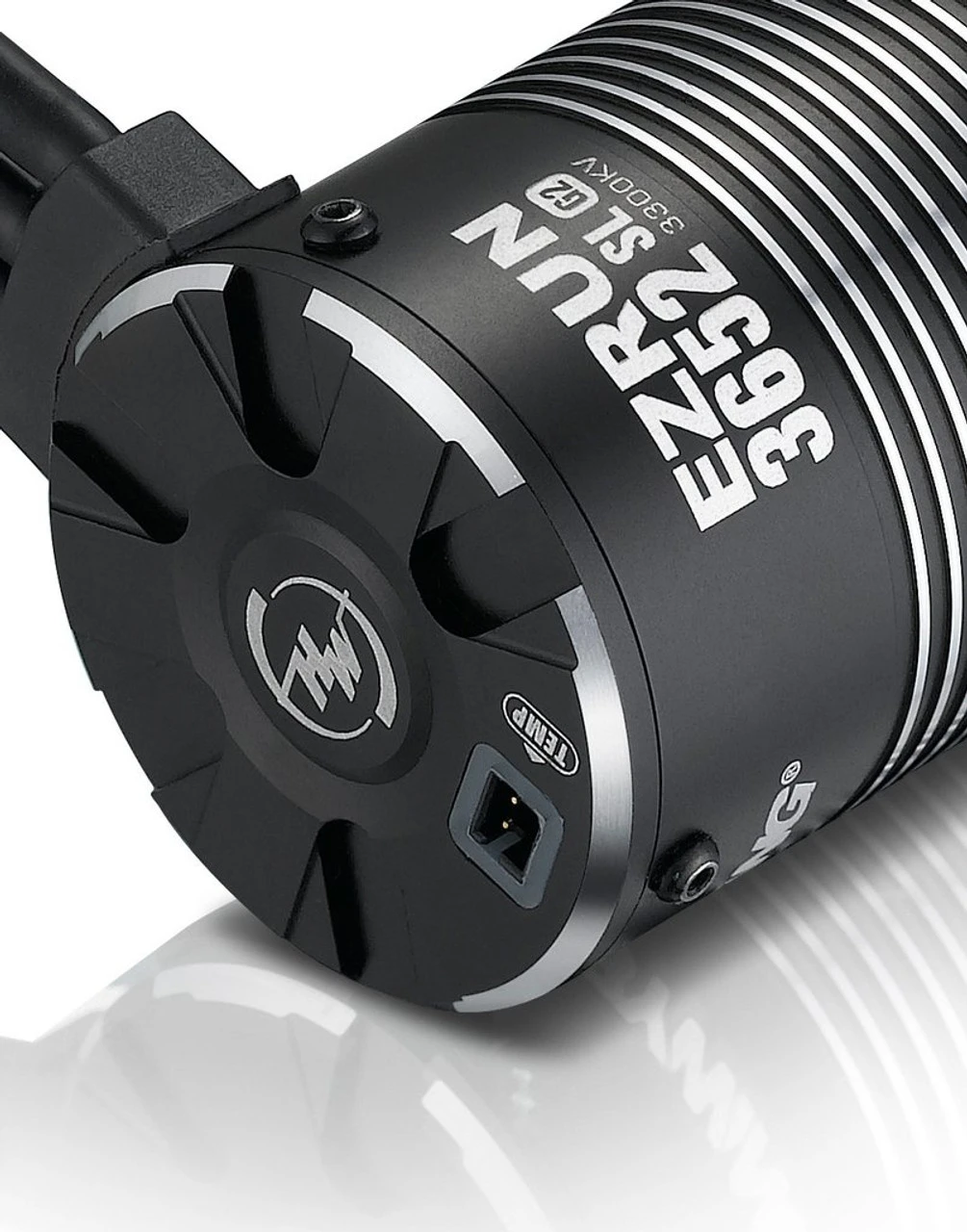

• Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3652 G2 with a EZRUN MAX10 ESC.
• O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
• Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.

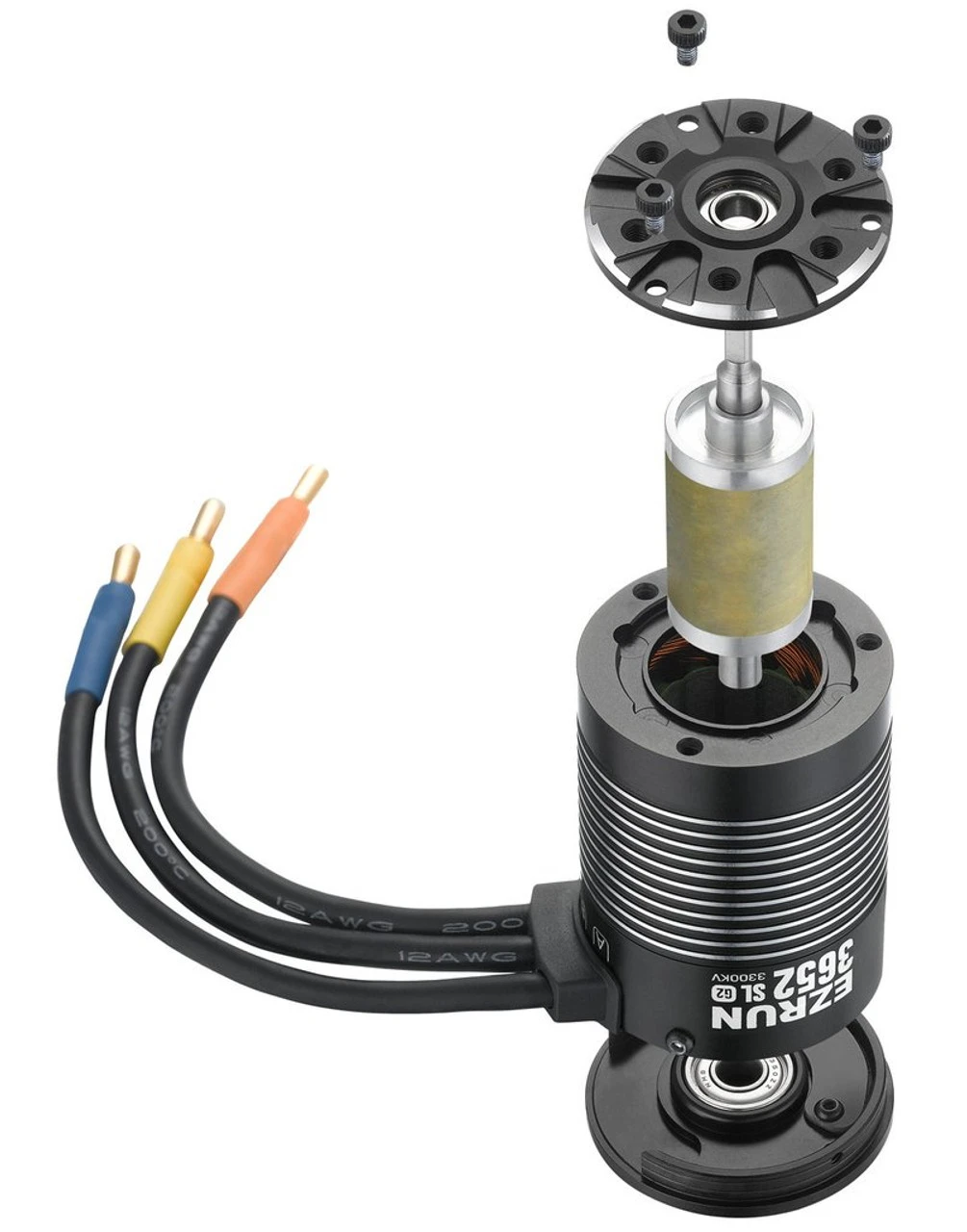

• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• Excellent match between EZRUN 3652 G2 with EZRUN MAX10 guarantees users large torque plus a very smooth and linear power band.

Specifications:
kV (no load): 4000
LiPo: 2-3S
Resistance: 0.0060
No-load Current: 5.2A
Motor Diameter: 36mm (1.417in)
Motor Length: 52mm (2.17in)
Shaft Diameter: 3.75mm (0.148in)
Shaft Length: 18.5mm (0.728in)
Poles: 4
Weight: 216g (7.62oz)
Applications: 1/10 light duty SCT, truck, monster truck

Includes:
(1) Hobbywing EzRun 3652 G2 Sensorless Brushless Motor

• Resources

  • Hobbywing EzRun User Manual
