HackFab HF-OMNI Losi Mini-T 2.0 Omni Chassis Conversion Kit

Product Description

HackFab HF-OMNI Losi Mini-T 2.0 Omni Chassis Conversion Kit



The hotly anticipated OMNI is HERE!

Our on-road / touring / multi-purpose platform chassis conversion. OMNI meaning omni directional, so not just for oval like our Mini Late Model and EDM conversions.

This chassis conversion kit will convert your Losi Mini-T 2.0 into a full fledged road car. We threw the kitchen sink at it in terms of adjustability. There are SO many options, it will likely make your head spin.

Features:

• Over 20+ possible battery mounting configurations
• Dual wheelbase options (204mm for McAllister Mini Late Model size bodies, 210mm for Tamiya M-chassis bodies)
• Dual servo mounting options (stock position and 7mm forward to allow for Savox w/o need for special servo mounts)
• Built in winglet in rear chassis to allow for mounting a rear bumper (coming soon), or our Wheelie Bar w/o needing to run the titanium lower mounting plate (the lower aluminum block can bolt right to the chassis)
• 2.5mm thick carbon fiber chassis, bumper, rear body mount extension

The chassis is universally designed to fit “most” medium capacity Lipos, ranging from the stock pack to those such as the Turnigy Nano-tech 1500mah 35-70C 2s and a slew of others (Venom 2000mah 25c 2s). Not knowing what people will want to run and what classes may develop, allowing for fitment of a larger capacity battery to pair with optional brushless options seemed like a logical choice. The battery brackets are 35mm wide and should fit most size lipos in this scale. A foam strip is included if you need to tighten up the width of the bracket.

Speaking of battery options.. let’s get into that. There are DOZENS of potential battery mounting options built into the chassis. They include:

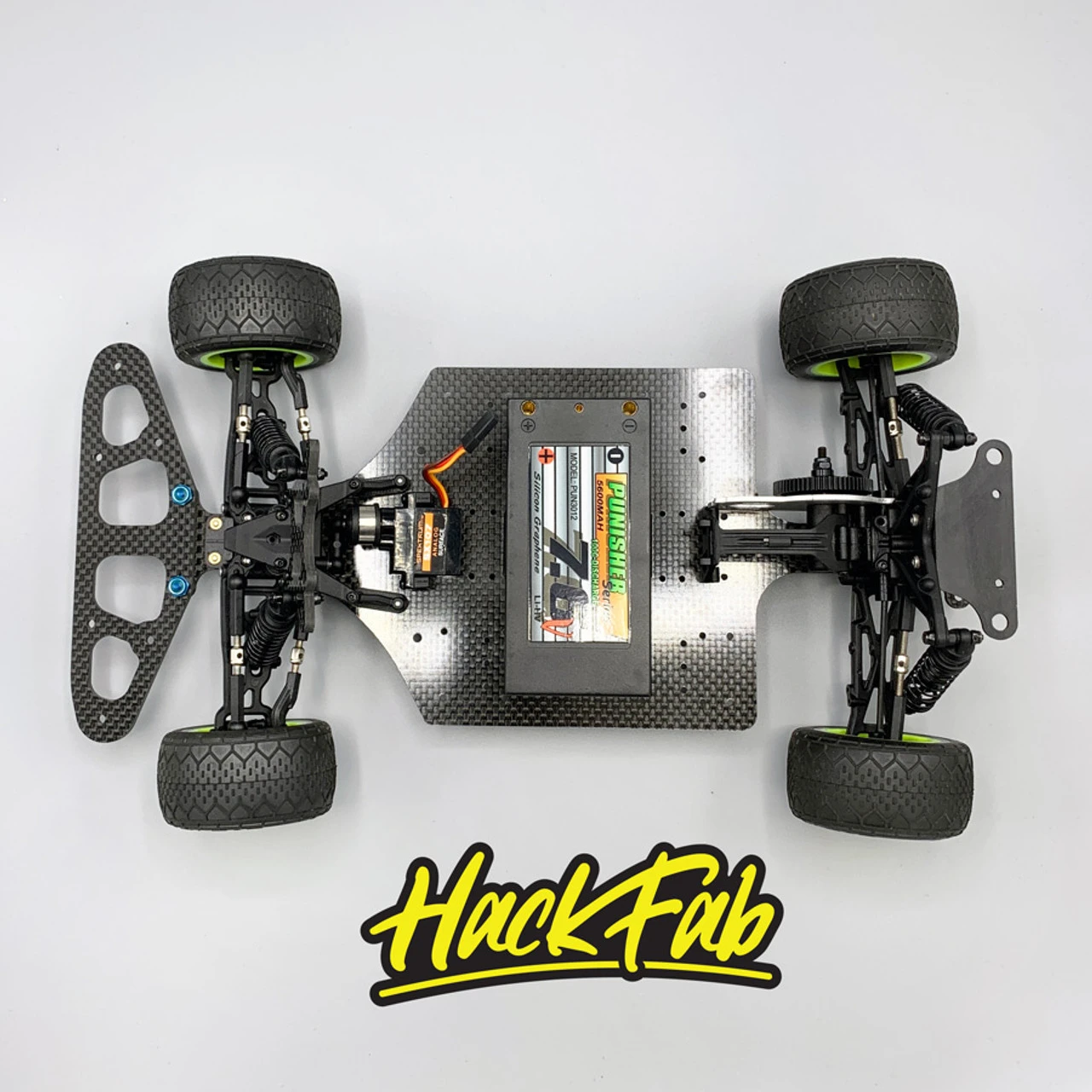

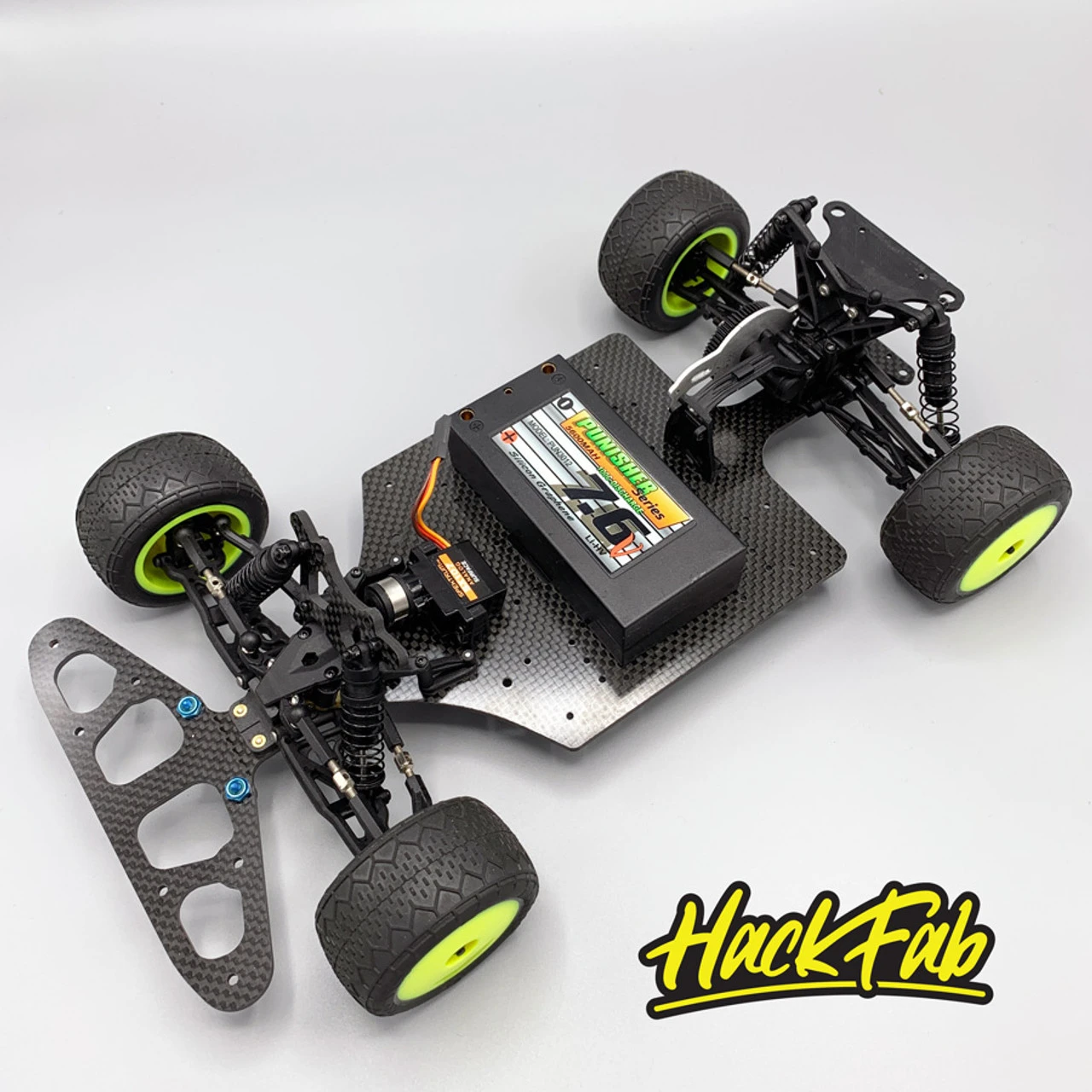

Transverse mounting (from right to left like in the Losi Mini-B

• 3 positions for transverse mounting – forward, mid, and rear
• Each position has 3 available width slots to fit batteries from the stock 58mm long lipo to the Nano-tech 89mm long lipo

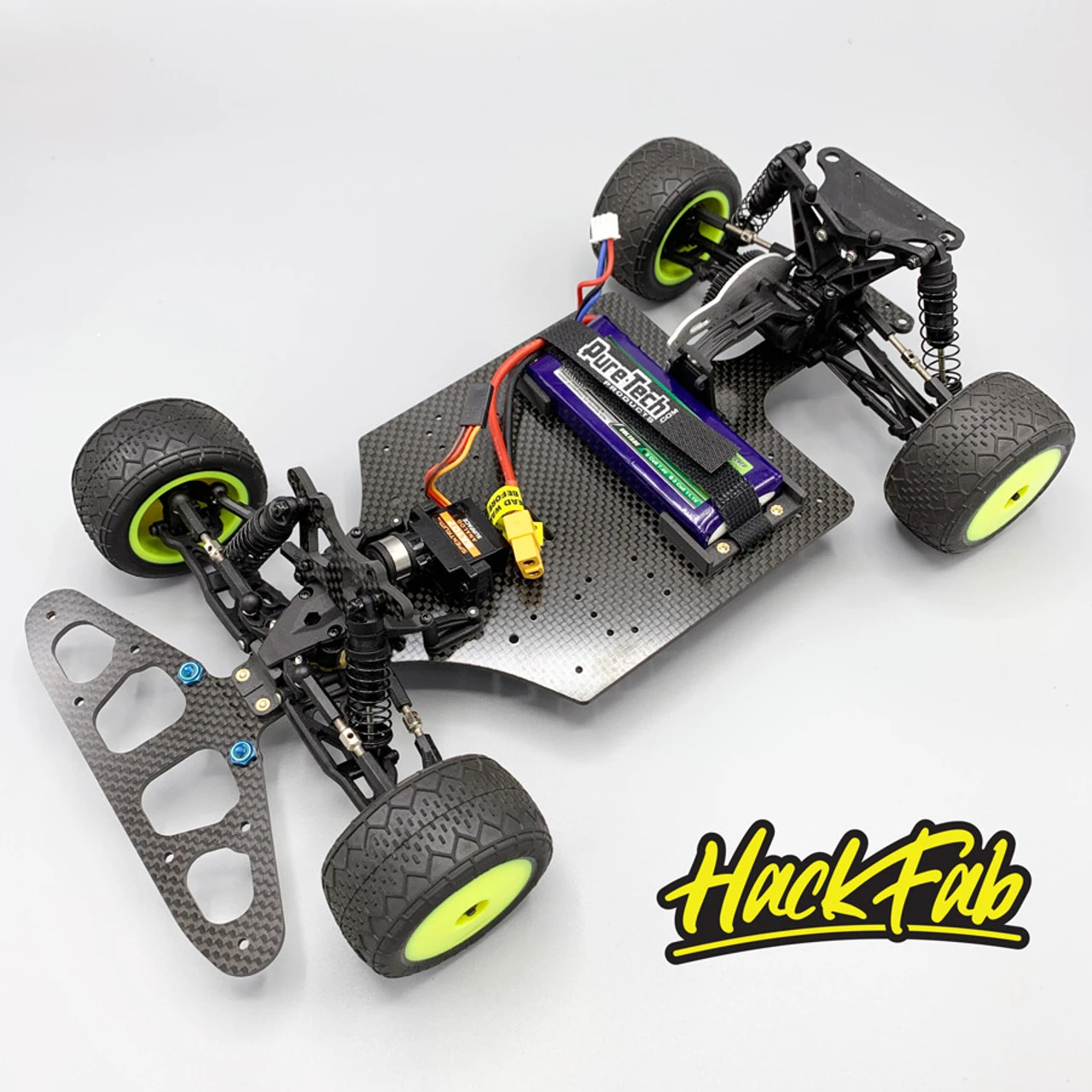

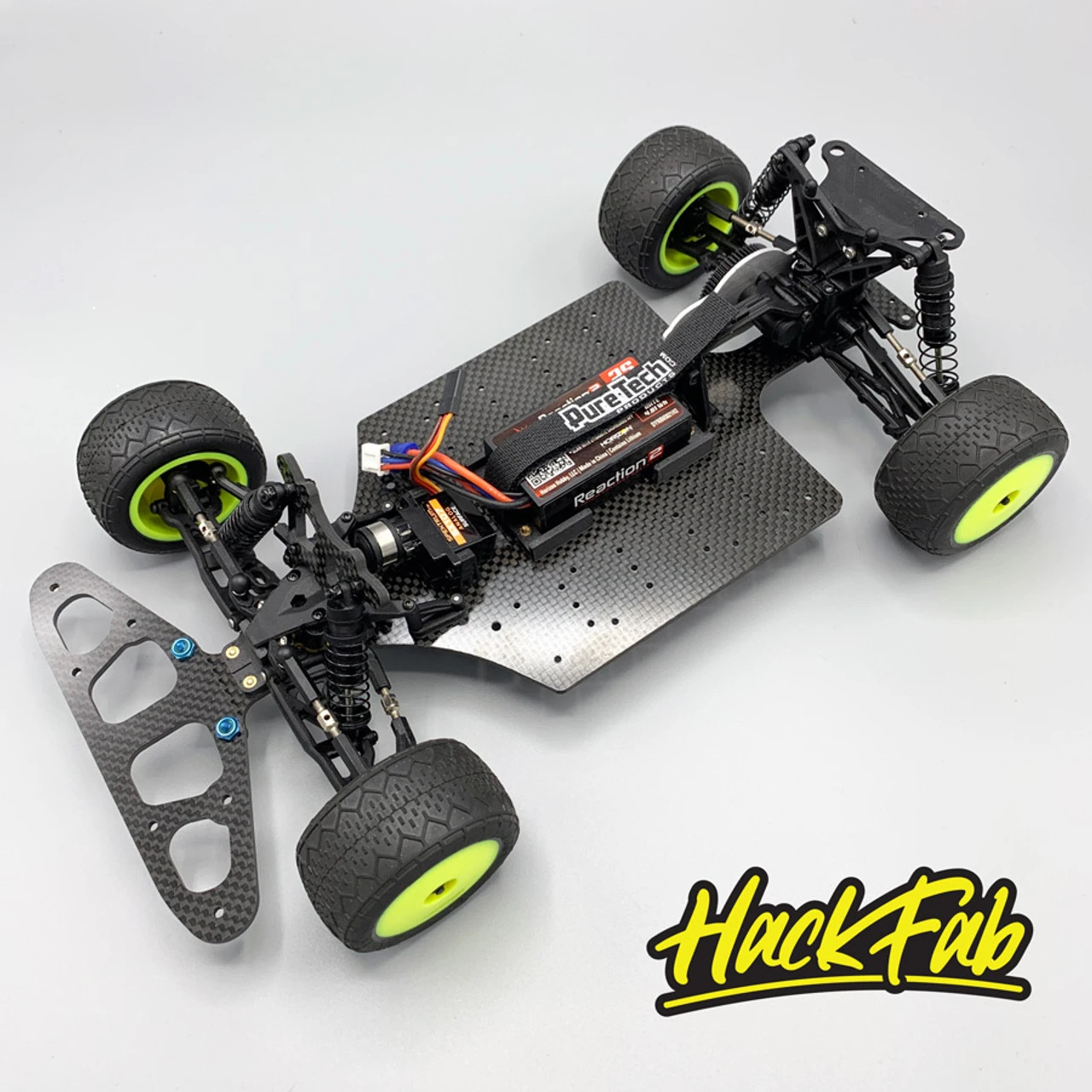

In-line mounting (between the servo and the waterfall)

• There are 2 battery bracket mounting positions here, mostly for smaller packs ranging from the stock 58mm up to 63mm long if you move both brackets to the outermost holes

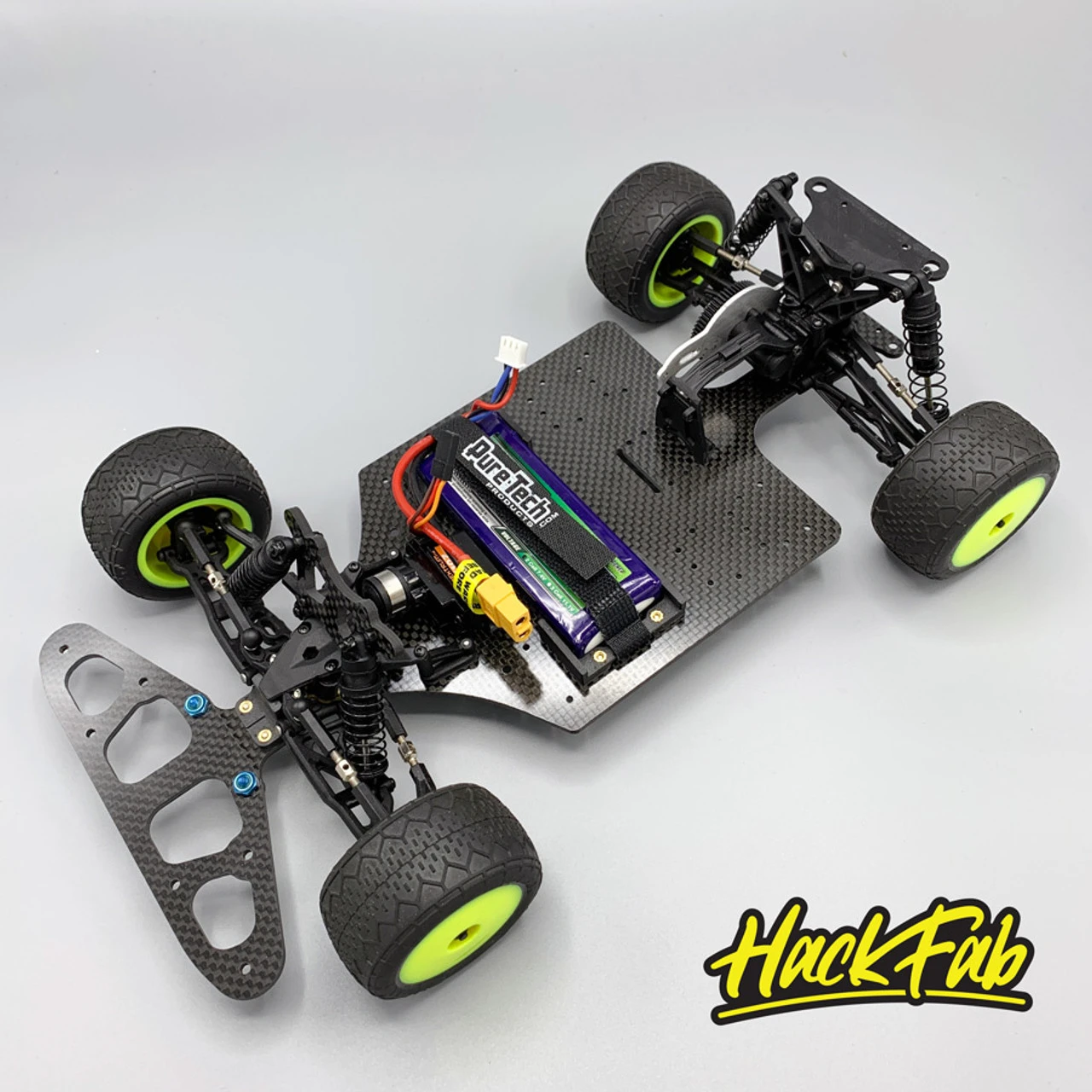

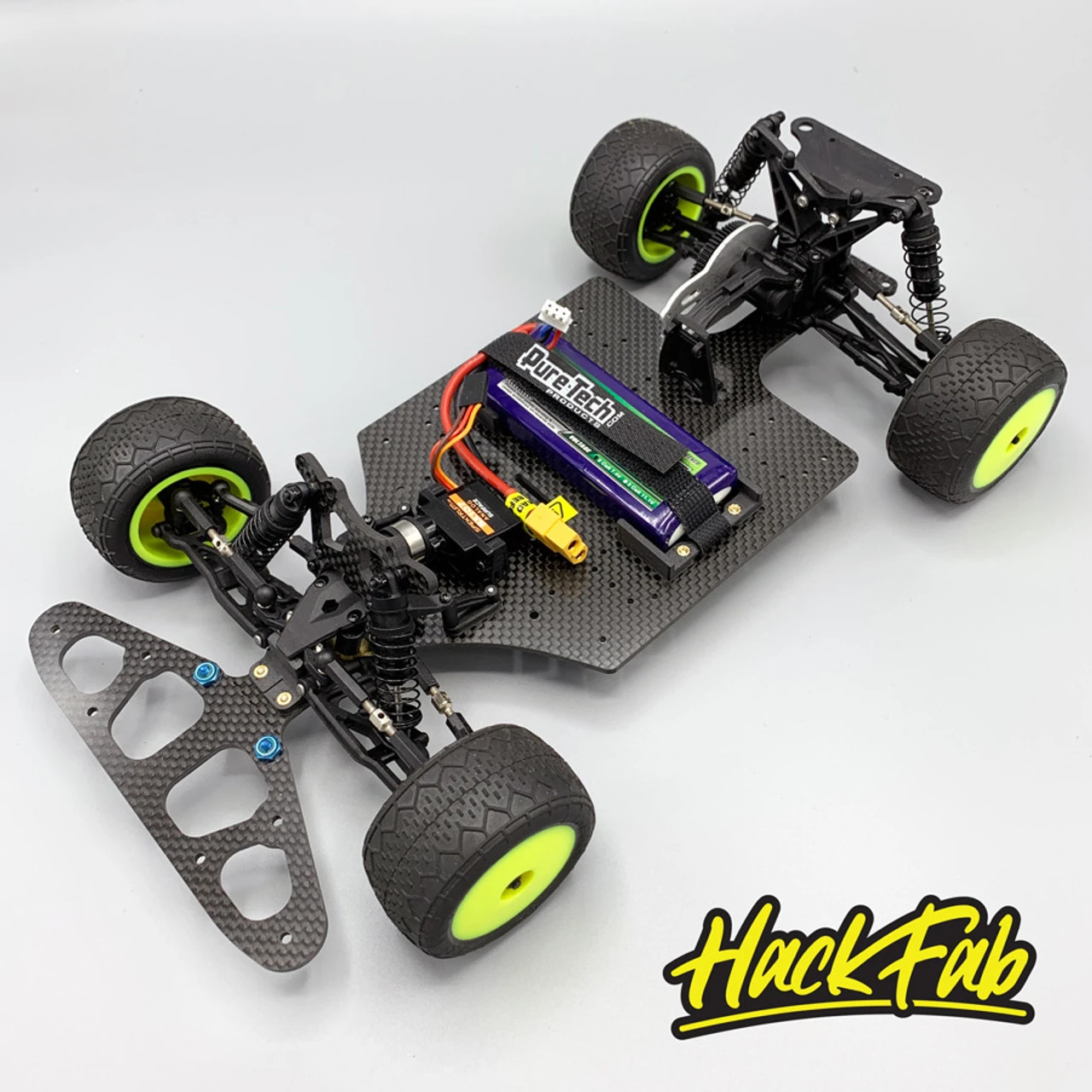

Left side only (for you oval guys)

• Granted, this has less chassis offset than our Mini Late Model conversion, it does offer the ability to be versatile and can run left offset.
• Left side battery options allow from stock size 58mm lipo to 89mm lipo

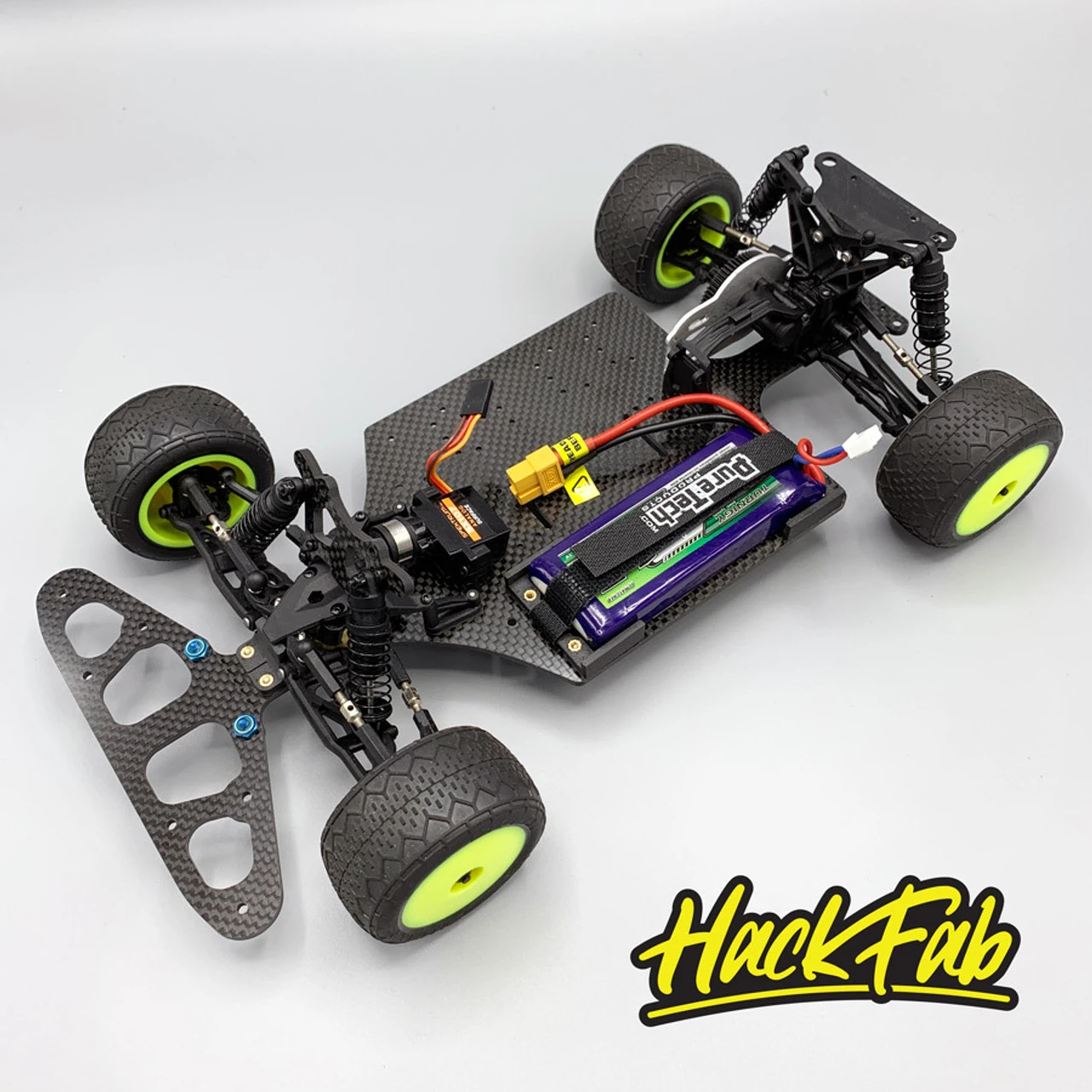

Right side only

• The pinion/spur allow for a little less length in lipo on this side – it can fit from stock to 79mm lipo

Right & Left

• If you are REALLY up for some craziness, you could run DUAL lipos on the left and right side with the purchase of an additional battery bracket set (not included)

Just for kicks

• We also included some battery strap holes for transverse mounting that allow for basically any other battery, included a 1/10 size shorty if you felt so inclined.

The battery brackets, kickup wedge, and rear body mount are all 3D printed parts (carbon infused polycarbonate). As such, the fit and finish may vary slightly from the photos. Due to the nature of 3D printing, items may contain minor visual blemishes. The battery brackets, kickup wedge, and rear body mount all include threaded brass inserts so the included m2 hardware will have a firm hold on the part and you do not have to worry about the screws pulling out of the plastic.

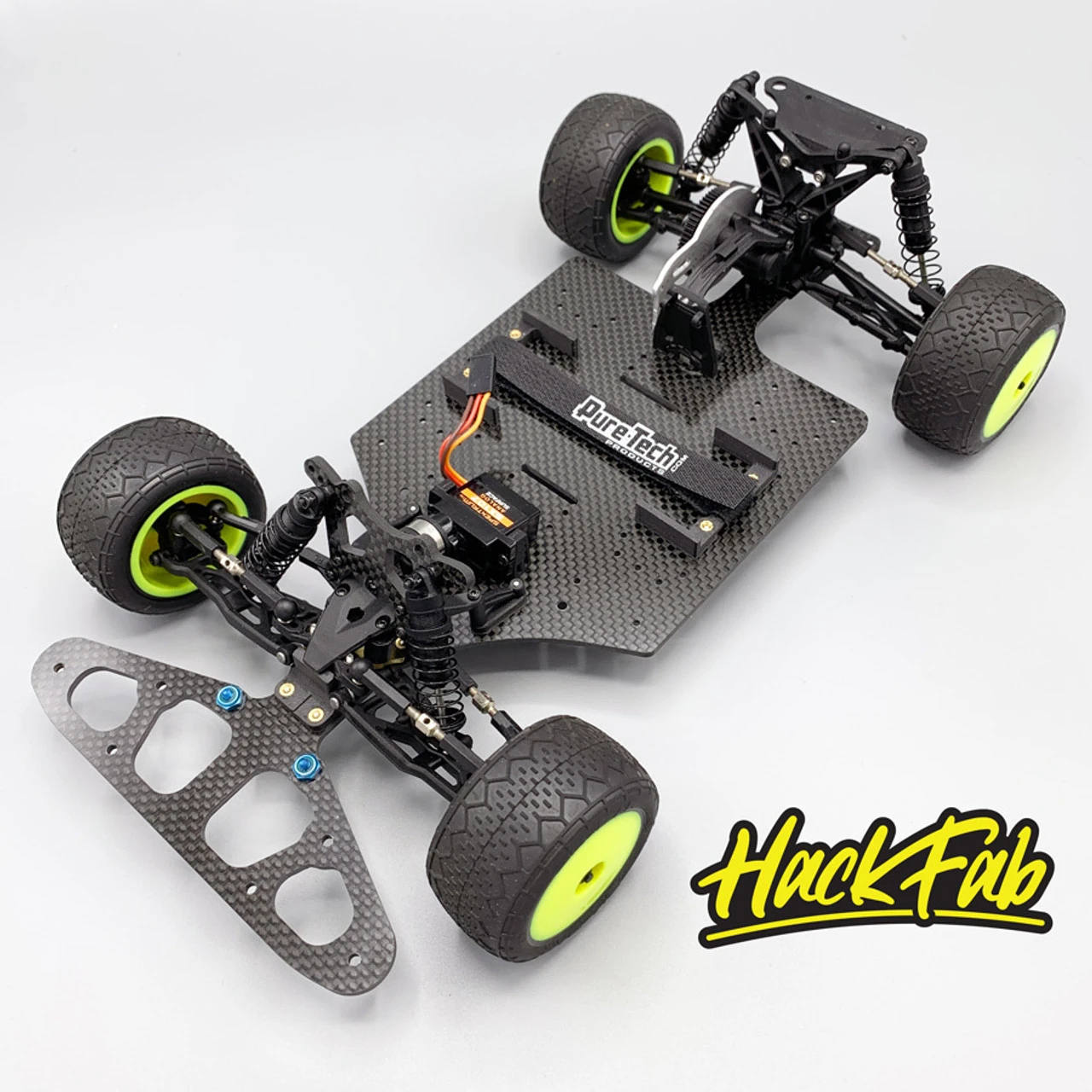

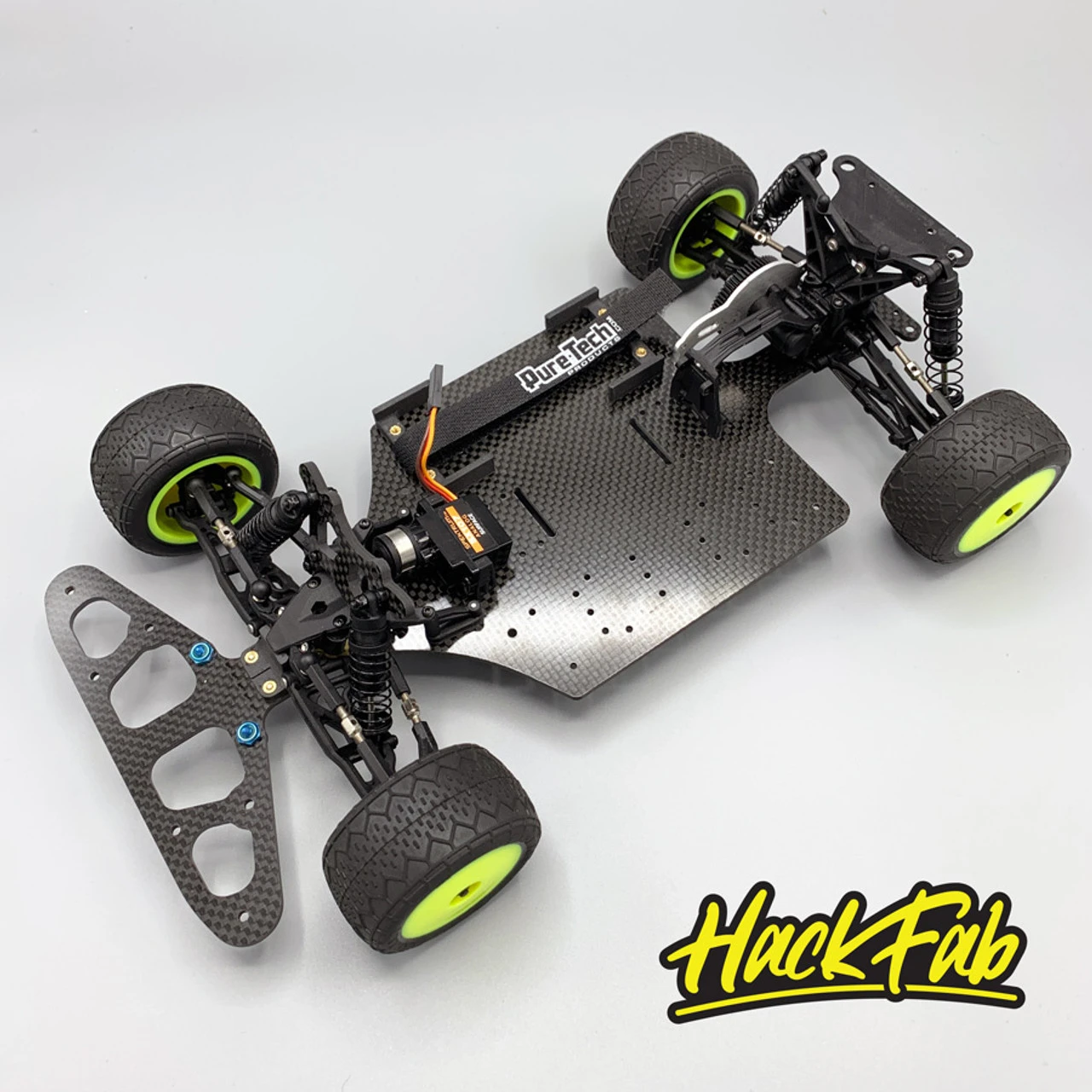

Note: Car in photos is pictured with optional carbon fiber shock towers. These are NOT included in the base conversion kit.

What’s included in the kit:
(1) Omni Chassis Plate
(4) 2″ body posts with screws
(1) Rear Body Mount w/ 5mm through-hole for easy adjustability
(2) Chassis Brace spacers
(1) Kickup wedge
(1) Brass Chassis spacer
(1) Battery brackets with built PureTech Products velcro strap
(1) Carbon Fiber Rear body mount extension (not shown in above assembled car photos)
(1) Carbon Fiber front bumper
All necessary hardware

Requires:
Losi Mini-T 2.0
Body of choice
