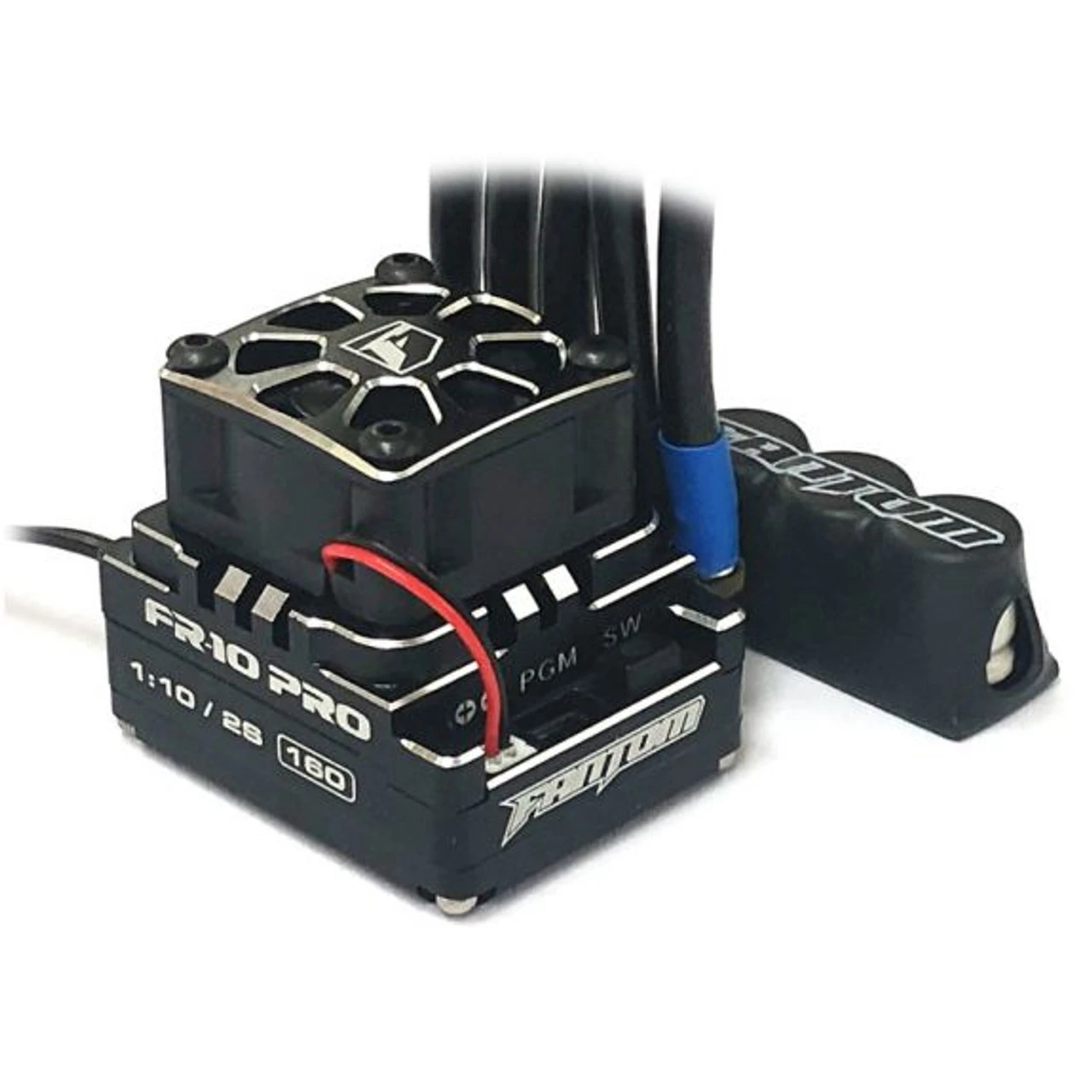

Fantom FR-10 PRO ESC, 1:10 Scale, 2-3S 160A- Black Edition

Product Description

Fantom 24050 FR-10 PRO ESC, 1:10 Scale, 2-3 Cell, 160A- Black Edition

When Fantom sets out to release a new product, their goal has always been to offer customers the very best products possible and it’s no exception with their new FR-10 Pro ESC.  At Fantom they live, breath, eat and sleep R/C racing, and love for their customers to have an edge over the competition.  From their highly sought after brushless racing motors and batteries, to their proprietary motor tuning tools, since 1980, racers have counted on Fantom for the highest performance products in R/C!

To continue their tradition of excellence, countless hours have gone into R&D, to bring you a professional racing ESC, second to none in performance and value!  The heart of the FR-10 PRO is the high-performance 32-bit CPU and proprietary firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters you’ve come to expect from a pro racing ESC!

Get one in your car today and see what Fantom means by More Power to the People!

Features:



• NEW All-Black Case
• All R&D Done in the USA
• 1:10 Scale / 2-3 Cell / 160 Amp

• Specifically designed for the highest level of spec and mod racing
• 2,303 Strand, 11awg, Ultra Low Resistance Wire
• CNC Machined Red Aluminum Case w/ Integrated Heat Sink

• High-Turbulence Heat Sink Design – Optimizes air flow for maximum cooling
• Ultra-Low Resistance FET Board

• 3 Integrated Max Power Capacitors

• Heavy-Duty Solder Posts

• Precision Throttle & Brake Frequency Adjustment

• 25mm Fan w/ Aluminum Fan Cover

• Ultra Precision Throttle, Brake, and Punch Control

• Blinky Mode Software

• On-Board Power Button

• Off-By-Radio Function
• Firmware Updateable with Fantom LCD Program Card

• ROAR APPROVED (Internals)/ ROAR Approval Pending (Black Case)

Specifications:
Continuous Current: 160 Amps
32-bit high performance CPU
Battery Input: 2-3 cell LiPo / 4-6 cell NiMH
BEC Output: Linear 6V or 7.4V Adjustable / 5 Amps
Dimensions without fan: (L) 38mm x (W) 30.6mm x (H) 19.3mm
Weight without wiring and fan: 48 grams
Programmable with LCD Program Card (sold separately)
Sensored: Yes
Sensorless: Compatible but not optimal
Motor Limit: 4.5 turn and over

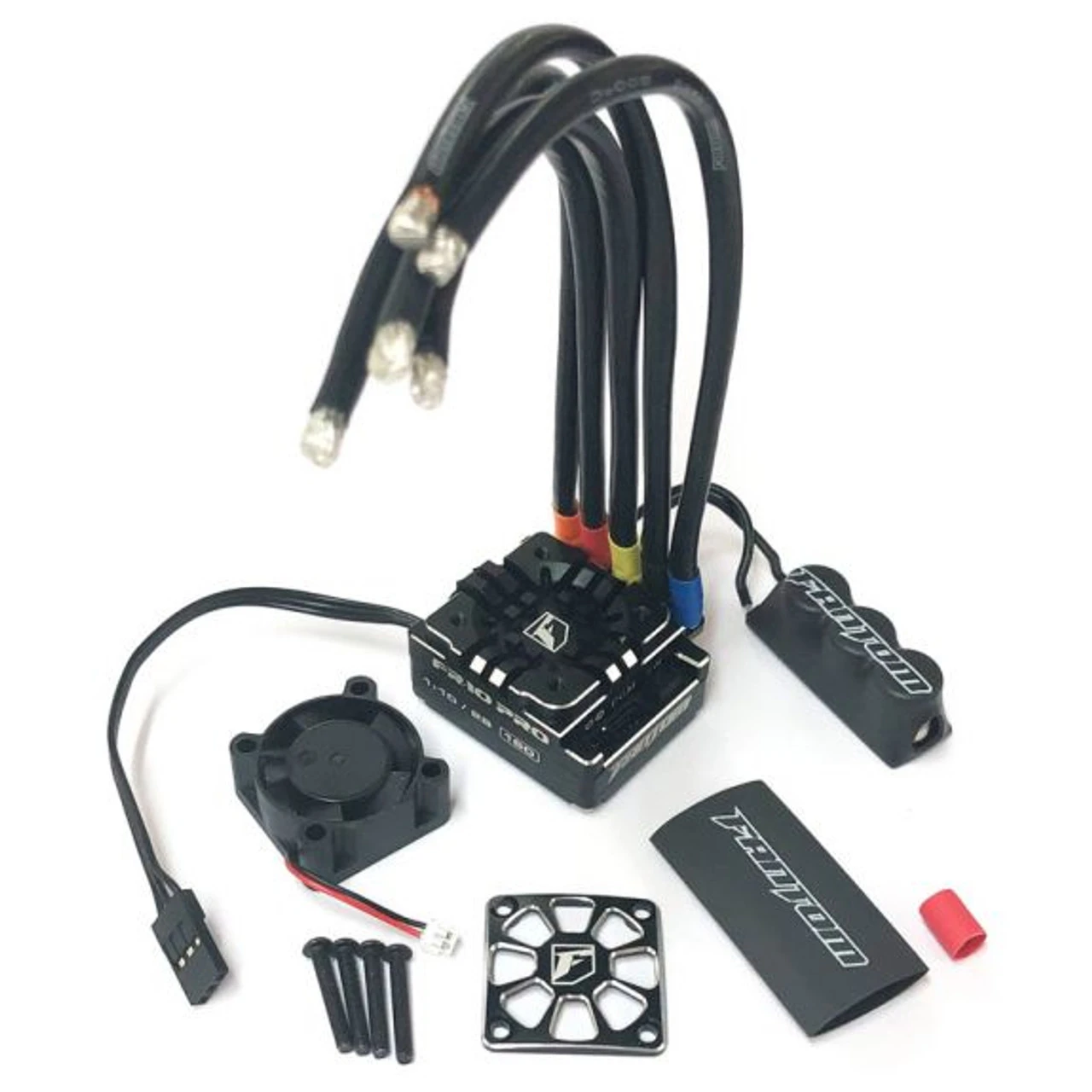

Included:

• FR-10 PRO ESC

• 25mm Fan

• Machined aluminum fan cover
• 2 x 165mm Input Wires – 11awg / 2,303 strand super-flex high performance wire (pre-soldered on ESC)

• 3 x 165mm Output Wires – 11awg / 2,303 strand super-flex high performance wire (pre-soldered on ESC)

• 3 Integrated Max Power Capacitors
• Shrink Tube w/ Fantom logo

Recommended Applications: All 2-cell and 3-cell, spec and modified motor racing applications.



Programmable Parameters:

General:

• RUNNNING MODE – Forward/Brake, Forward/Brake/Reverse, Forward/Reverse

• LOW VOLTAGE CUTOFF – Disable, Auto, custom 3.0v to 11.1v (0.1v increments)
• ESC OVER-HEAT PROTECTION – Disable, 3 steps
• MOTOR ROTATION – Normal, Reverse
• RACE MODE – Stock (Blinky), Modified
• DEADBAND – 12 steps
• BEC OUTPUT – 6v, 7.4v

Throttle:

• INITIAL POWER LIMITER – 30 steps
• THROTTLE RATE – 30 steps
• DRIVE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• RPM LOCK – 1% to 100% (1% increments)
• THROTTLE CURVE – Linear, Custom


Brake:

• INITIAL BRAKE – 1% to 20% (1% increments)
• DRAG BRAKE – 0% to 100% (1% increments)
• BRAKE FORCE – 0% to 100% (12.5% increments)
• INITIAL BRAKE RESPONSE – 20 steps
• BRAKE RATE – 20 steps
• BRAKE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• BRAKE CURVE – Linear, Custom
• OFF BY RADIO – Yes, No

Boost:

• BOOST TIMING – 0° to 64° (1° increments)
• BOOST TRIGGER LEVEL – 50 steps

• BOOST TRIGGER RATE – 10 steps

Turbo:

• TURBO TIMING – 0° to 64° (1° increments)
• START RPM – 8,000 RPM to 50,000 RPM (1000 RPM increments)

• TURBO DELAY – Instant, 0.05 seconds to 1 second (.05 second increments)

• ACTIVATION METHOD – Full Throttle, RPM, Full Throttle + RPM

• TURBO ON RATE – 10 steps

• TURBO OFF RATE – Instant, 10 steps

Data:

• MINIMUM BATTERY VOLTAGE

• MAX ESC TEMP

• MAX MOTOR RPM
