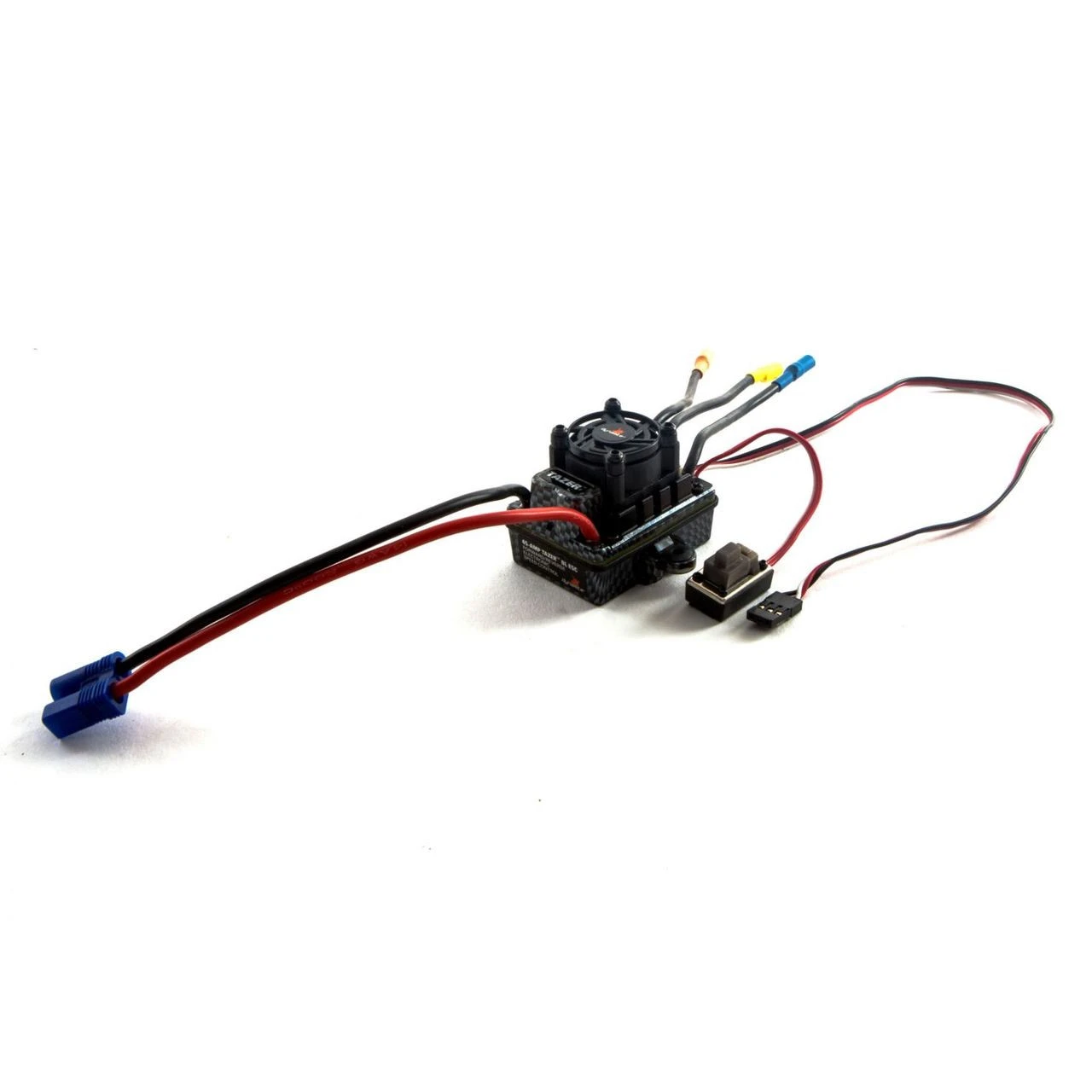

Dynamite 2400 “Tazer” 45A Sensorless Brushless ESC Waterproof V2

Product Description

Dynamite 2400 “Tazer” 45A Sensorless Brushless ESC Waterproof V2

This is the “Tazer” 45A Sensorless Brushless ESC and is available by itself or as a combo with a 6-pole brushless motor.

Features:

• Easier than ever to toggle between battery chemistries
• Easy to program via your transmitter or compact program card. No need to haul around a PC
• Improved operation under heavy loads
• Allows a hard mount, with servo tape and/or velcro
• Waterproof

Specifications:
Auto Cutoff: Yes
BEC: Yes
BEC Continuous Current: 3A
BEC Type: Switch-Mode
BEC Voltage: 6V
Battery Connector: EC3
Battery Input Lead: 14AWG, 6 in
Brakes: Yes
Forward: Yes
Full On Resistance: 0.0012 ohm
Height: 1.46 in (37mm)
Input Voltage: 2-3S LiPo/LiFe, 4-9 cells NiMh/HiCd
Length: 1.89 in (48 mm)
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 290A
Maximum Continuous Current: 45A
Motor Connector: 3.5 mm Bullet
Motor Limit: 2S LiPo – up to 6000KV. 3S LiPo – up to 4000KV
Motor Output Lead: 16 AWG, 4 in
Overload Protection: Yes
Reverse: No
Sensored: No
Type: 45A Sensorless Brushless, Waterproof
Weight: 2.82 oz (80 g)
Width: 2.2 in (56.1 mm) with mounting tabs, 1.46 in (37 mm) without mounting tabs

• Resources

  • Tazer 45A Sensorless Brushless ESC Instruction Manual

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
