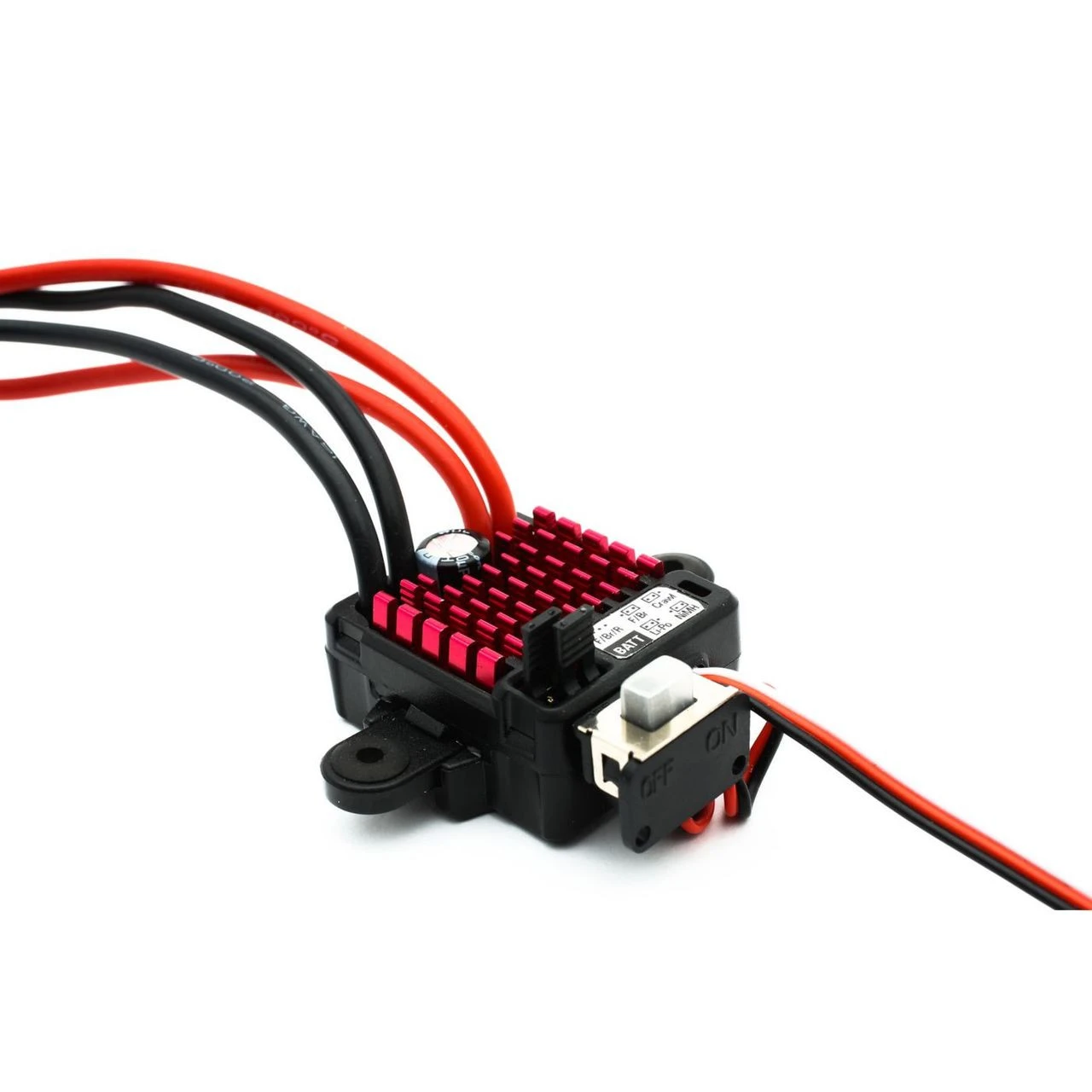

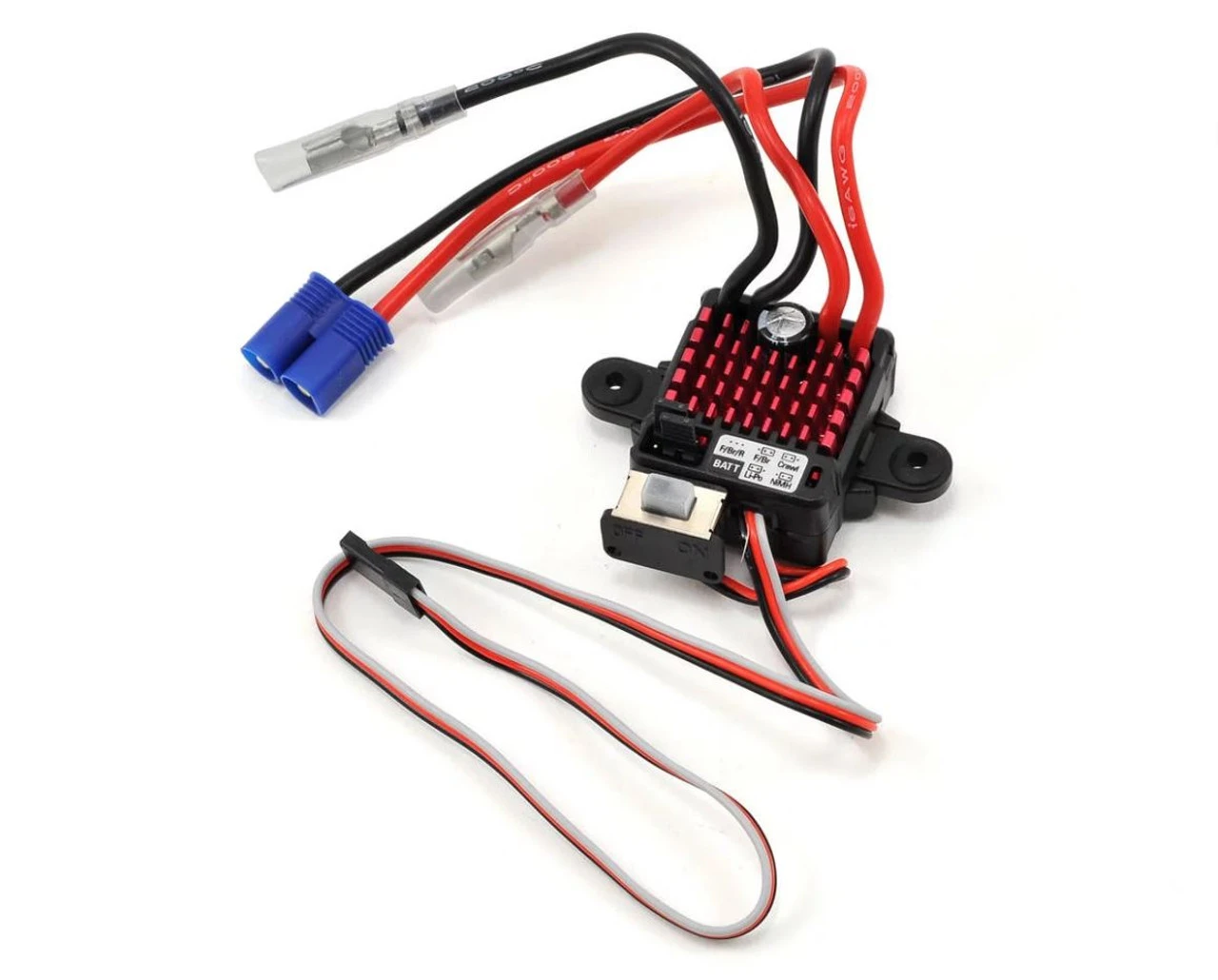

Dynamite 2210 WP 60A FWD/REV Brushed ESC

Product Description

Dynamite 2210 WP 60A FWD/REV Brushed ESC

This waterproof, brushed ESC is NiMH/LiPo compatible and offers forward/brake/reverse, forward/brake and crawler drive modes. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. This ESC is built to allow the user to operate it in many “wet conditions,” including puddles, creeks, wet grass, snow and even rain.

Features:

• Waterproof for all weather operation*

• 2-3S LiPo and 5-9 cell NiMH compatible
• Program functions changed with the use of jumper pins
• Up to an 8T motor limit
• Removable mounting tabs create an even smaller footprint and allow hard mounting in a wide variety of vehicles
• Crawler running mode
• Pre-wired with EC3 battery connector and RTR compatible motor bullets for easy installation

*While waterproof, this component has not been designed to immerse in water for long periods of time and should NOT be treated like a submarine. Please be sure to read through the general precautions listed in the user’s manual.

Specifications:
Type: Brushed
Constant/Peak: 60A/360A
Resistance: 0.0008 Ohms
Function: Forward/Brake/Reverse, Forward/Brake, Forward/Reverse (Crawler Mode)
Vehicle Type: 1/10 on-road and off-road, 1/10 rock crawler
Operation: Proportional forward, proportional reverse with braking delay, Crawler Mode
Battery Type/Input Voltage: 2-3 Cell LiPo/LiFe, 5-9 Cell NiMH/NiCd
Motor Type: 540/550 size closed endbell motors: 2S LiPo down to 8T; 3S LiPo down to 13T
BEC Output: 5V/2A
Overload Protection: Thermal
Dimensions: 35.6x34x18mm (1.40×1.34×0.71in)
Weight: 40g (1.41 oz) with wires
Battery connector: EC3 Connector
Motor connector: 3.5mm Tamiya-style bullet

• Resources

  • Dynamite 60A Brushed Waterproof ESC Instruction Manual

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
