Sale!

Castle Creations Mamba XLX 2 1/5 Scale Sensored Brushless ESC

Original price was: $269.95.Current price is: $98.99.

SKU: CSE010-0167-00 Categories: ESCs, Motors, ESCs & Accessories Tags: Castle Creations, ESCs

High quality products, hassle-free returns.
Multiple payment methods, 100% payment security
Effortless solutions, excellent customer care.
7 Days of Hassle-Free Returns

Description
Reviews (0)

Product Description

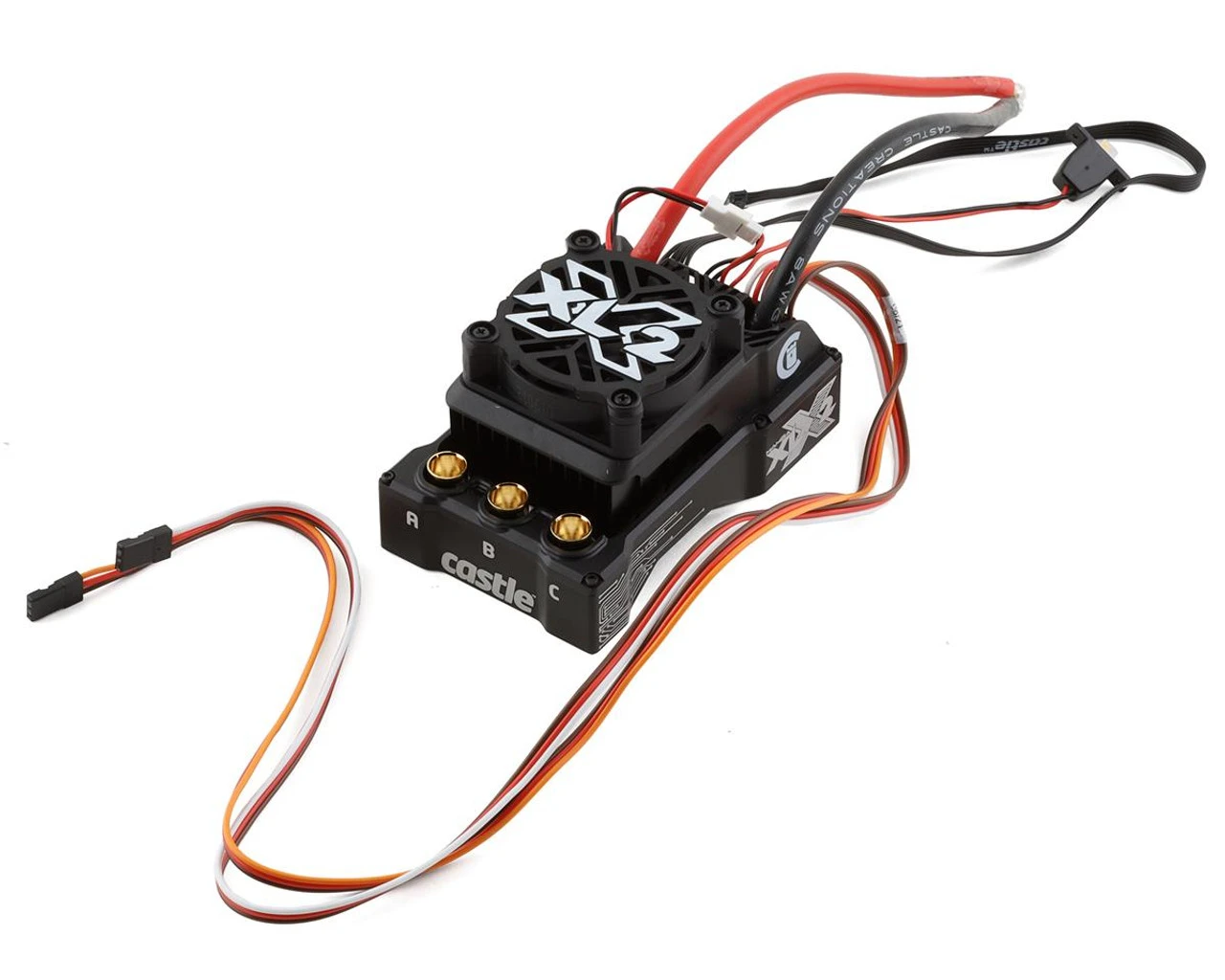

Castle Creations Mamba XLX 2 1/5 Scale Sensored Brushless ESC

The Castle Creations Mamba XLX 2 1/5 Scale Sensored Brushless ESC is a product guaranteed to redefine the limits of large scale R/C. Though it shares the name of its predecessor, the Mamba XLX, this is an ESC that lives in a class of its own.

Reengineered from the ground up, the Mamba XLX 2 is packed with a potent combination of design, hardware and software advancements that will set a new standard for large-scale power systems. Designed for 1/5 Scale models weighing up to 42 lbs, the XLX 2 is an incredible power upgrade for the Losi DBXL-E and Super Rock Rey, Arrma Kraton 8S and Outcast 8S, or Traxxas X-Maxx models! If you are looking for the ultimate upgrade for your speed run, drag racing or off road rigs – the XLX 2 is a true heavyweight, with no contenders.

CRYO-DRIVE: MORE POWER – COOLER TEMPS – LONGER RUNS

Castle’s latest break-through technology, minimizes the amount of time the ESC’s electrical components spend generating heat. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 50mm fan and a forged elliptical fin heatsink, the design maximizes airflow through the system, taking thermal performance to the next level. The results are cooler ESC temperatures, increased runtime and more power handling.

NOTE Some vehicles may require aftermarket parts to allow ESC and/or motor fitment.

Features

Sensored, Sensorless and SmartSense™ running modes
Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
Premium forged heatsink with for superior airflow and increased heat dissipation
Oversized factory equipped thermally controlled 50mm fan
Waterproof design for all weather conditions.
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
Data-logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff
Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake
Easily tune and update ESC with USB and Bluetooth™ programming options.
Castle Link USB programming kit (coupon included with purchase)
Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty

Specifications

Input voltage range 3S-8S LiPo

Length 3.98” (101.2mm)

Width 2.49” (63.3mm)

Height 2.2” (55.8mm)

On/Off Switch Yes, waterproof*

Cooling Fan Yes, thermally controlled factory equipped (50mm) fully removable**

Weight 13.1 oz (371g)

Running Modes Sensored, Brushed, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor. (Dust cover included in package for non-sensored operation)

Wire Gauge 8AWG

Telemetry Link Capable Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters.
Items Needed Connectors designed for 150+ amps continuous, such as Castle 6.5mm polarized or CC BULLET 8.0MM

Includes
(1) Mamba XLX2 ESC
(1) 300mm Direct Connect Sensor Wire
Mamba Decals
Motor connection wire, bullets and shrink (not included with combos)
Mamba XLX2 Quick Start Guide
Sensor port dust cover
