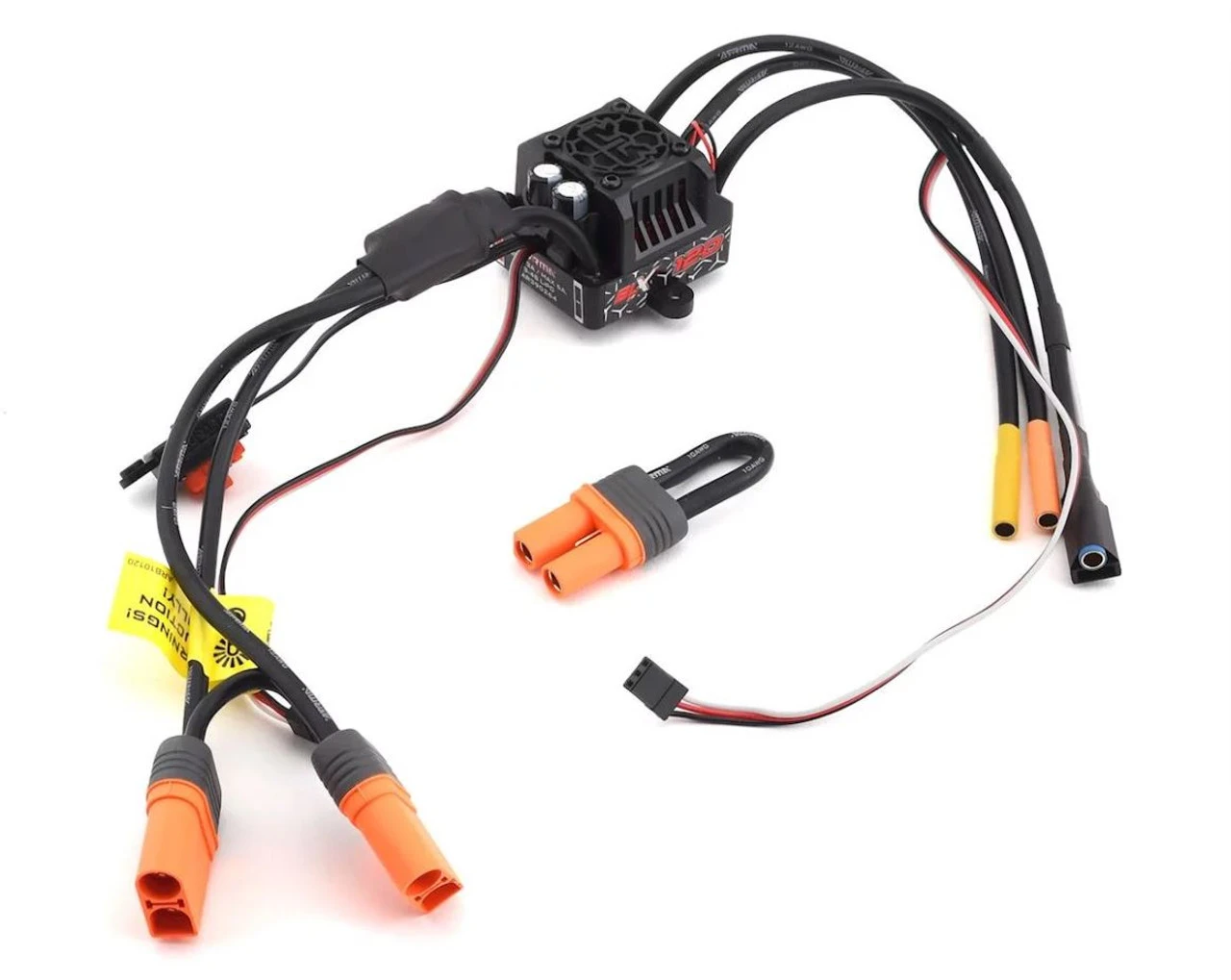

Arrma 390264 BLX120 Brushless 4S ESC

Product Description

Arrma 390264 BLX120 Brushless 4S ESC

The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.

Features:

• Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
• The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Specifications:
Battery Usage: 3S LiPo (11.1V) or 4S LiPo (14.8V)
Low Voltage Cut-Off (LVC): 3.4V per cell
Thermal Protection Temperature: 125°C / 257°F
Over-Voltage Protection: Over 17.2V
BEC Voltage: 6V
BEC Current: 3A
ESC Length: 43mm / 1.69″
ESC Height: 34mm / 1.34″
ESC Width: 54.5mm / 2.15″ (Including Hold-Down Tabs)
ESC Weight: 150g / 5.3 oz
Receiver Wire Length: 170mm / 6.70″
Battery Wire Length: 225mm / 8.86″
Motor Wire Length (Including Connector): 200mm / 7.87″
Switch Length: 21mm / 0.83″
Switch Width: 13.3mm / 0.52″
Switch Height: 16mm / 0.63″
Motor Bullet Connector Size: 4mm / 0.16″
Wire Specifications: 12AWG
ESC Battery Connector Type: 2xEC5

Includes:

• (1) BLX 120 Brushless 4S ESC
• (1) Loop Connector
