Arrma 390211 BLX185 Brushless 6S ESC

Product Description

Arrma 390211 BLX185 Brushless 6S ESC

The BLX185 150A waterproof ESC provides consistent power control and is 6S LiPo ready. Fitted with super-reliable XT-90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX185 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management. The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Recommended battery specification: 5000mAh – 35C minimum – Per battery pack 3S, 4S and 6S LiPo Compatibility.

Features:

• Waterproof ESC and power switch for rugged reliability in all-conditions.
• Integrated Cooling fan for reduced heat during extreme running.
• 6S LiPo Ready
• XT-90 Battery Connectors for added fitting security and increased power transfer reliability.

Specifications:
Type: 150AMP Continuous Current Capacity
Length: 57.5mm/2.26″
Height: 38.9mm/1.53″
Width: 59.5mm/2.34″ (Including Hold-Down Tabs)
Weight: 196g/6.91oz.
Battery Connector Type: XT90
Over-Voltage Protection: Over 6S LiPo (25.2V)
BEC Voltage: 6V
BEC Current: 3A
Wire: 10AWG

Includes:

• (1) BLX185 Brushless 6S ESC

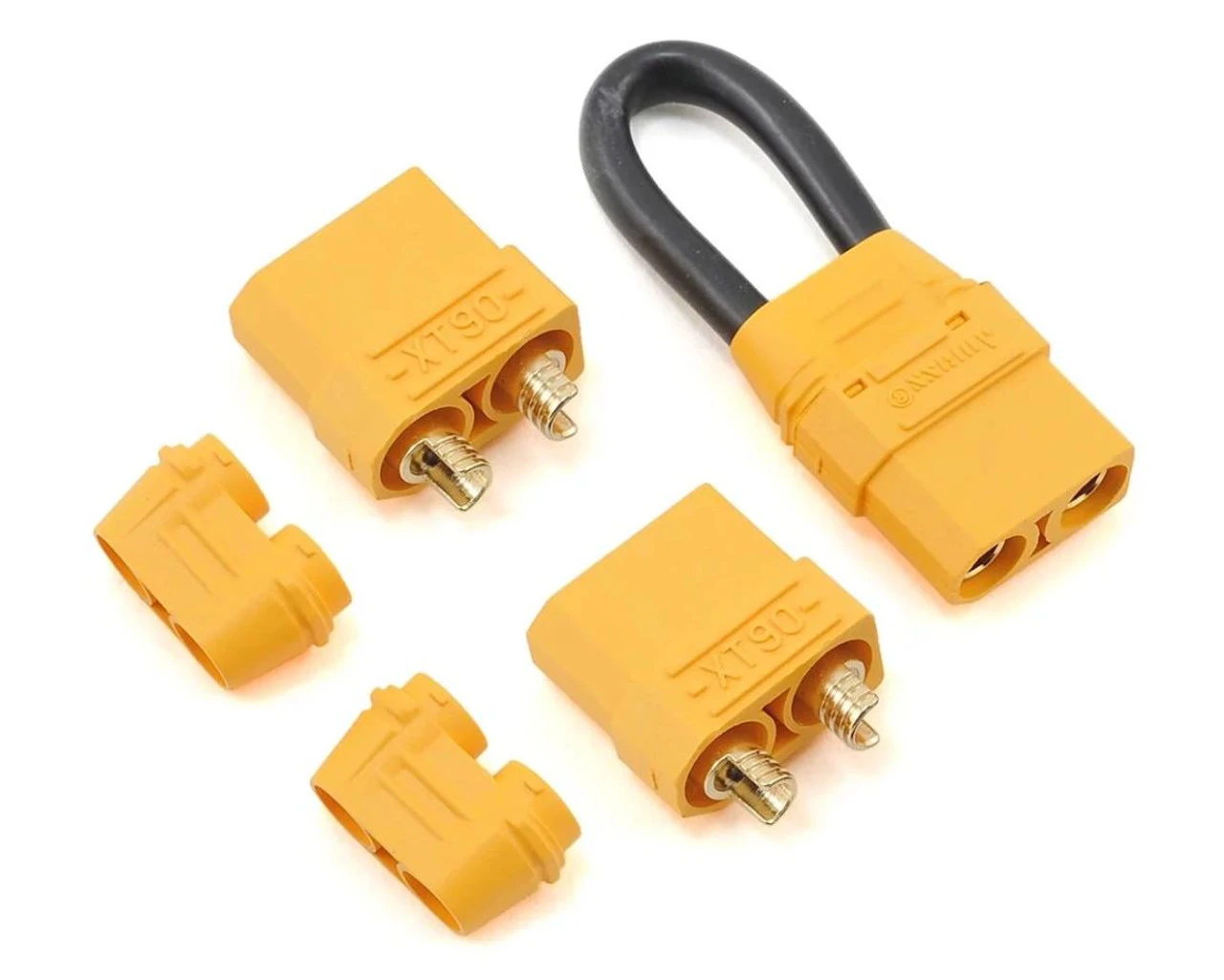

• Package of XT90 Connectors



Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
